Interference Fit Face

The sealing face is a very tight fit into a metal casing. It is heat-shrunk in and fixed in place

Type: 8
Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with inserted seal face. To common, non-DIN European housing dimensions.
More Information >
Type: 8DIN
Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with inserted seal face and stationary seal to suit DIN housings.
More Information >
Type: 8DINS
Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with inserted seal face and short, un-pinned stationary seal to suit DIN housings.
More Information >

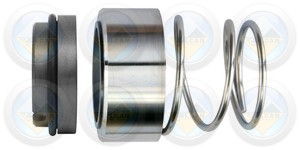

Type: 82
Conical spring, ‘O’-Ring mounted, stepped-shaft and balanced, shaft directional dependent seal. Standard seat suits DIN housing bores.
More Information >
Type: 12(Inserted)
Inserted, hard-faced version of the standard, monolithic Type 12, with a heavy duty spring which grips the shaft to provide positive drive.
More Information >
Type: 12DIN(Inserted)
Inserted, hard-faced version of the standard, monolithic Type 12DIN. The seal has a heavy duty spring which grips the shaft to provide a positive drive.
More Information >

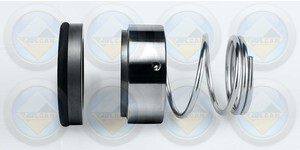

Type: 126(Inserted)
Inserted, hard-faced version of the standard, monolithic Type 126. To suit standard DIN L1K housing dimensions.
More Information >
