Seal Details

Type: 10

10

Click for additional images

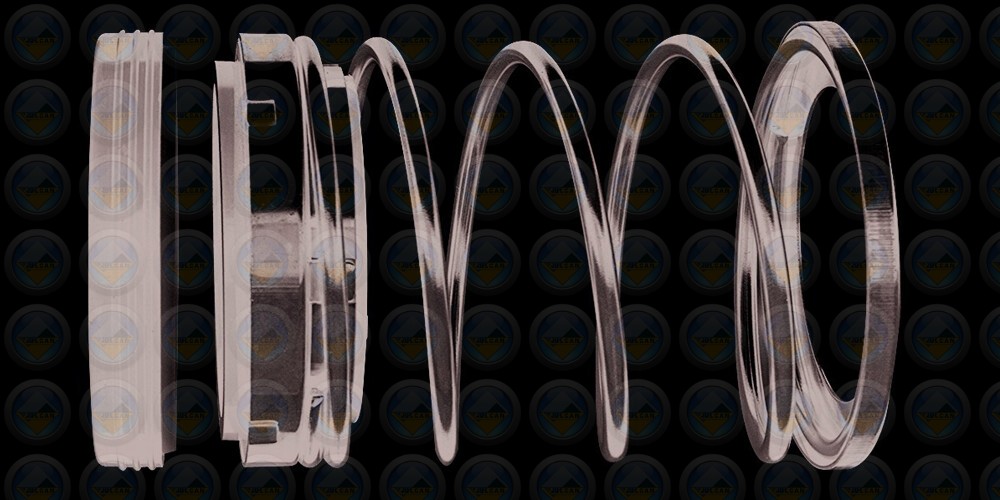

Resilient, single spring, rubber diaphragm seal with a Type 20 boot-mounted stationary as standard, to suit original common UK housing sizes. A widely utilised seal type highly suited to general duties, capable of long service life.

These seals are increasingly preferred with a narrow profile and a resilient elastomer mounted face for improved performance and these are available as Types N10 and N20.

Also available with ‘O’-Ring mounted stationaries, as Types 10H and 20H

Existing Customer? Order on-line

Metric Dimensions

D0Size
Code		D1D3L1L2
10 0100 24.6 21.8 43.66 8.74
12 0120 27.79 23.5 43.66 8.74
13 0130 27.79 23.5 43.66 8.74
14 0140 30.95 27 43.66 10.32
15 0150 30.95 27 43.66 10.32
16 0160 30.95 27 43.66 10.32
18 0180 34.15 30.7 43.66 10.32
19 0191 34.15 30.7 43.66 10.32
20 0200 35.7 33.4 43.66 10.32
22 0220 37.3 33.4 43.66 10.32
24 0240 40.5 39.2 43.66 10.32
25 0250 40.5 39.2 43.66 10.32
28 0280 47.63 45.6 60.33 11.99
29 0290 47.63 45.6 60.33 11.99
30 0300 50.8 47.4 60.33 11.99
32 0320 50.8 47.4 60.33 11.99
33 0330 53.98 52 60.33 11.99
34 0340 53.98 52 60.33 11.99
35 0349 53.98 52 60.33 11.99
38 0381 57.15 55.6 60.33 11.99
40 0400 60.33 59.2 60.33 11.99
41 0410 60.35 59.2 60.33 11.99
42 0420 63.5 65.1 70.64 11.99
43 0430 63.5 65.1 70.64 11.99
44 0440 63.5 65.1 70.64 11.99
45 0450 63.5 65.1 70.64 11.99
48 0480 66.68 66.7 70.64 11.99
50 0500 69.85 71 70.64 13.5
53 0530 73.03 73.3 70.64 13.5
55 0550 76.20 78.6 70.64 13.5
58 0580 79.38 82.1 70.64 13.5
60 0600 79.38 82.1 70.64 13.5
63 0630 82.55 84.6 70.64 13.5
65 0650 92.08 88.6 69.85 15.88
70 0700 95.25 90 69.85 15.88
75 0750 101.6 102.7 73.03 15.88
80 0800 114.3 104 79.38 19.88
85 0850 117.48 108 79.38 19.88
90 0900 123.83 112 79.38 19.88
95 0950 127 119 82.55 19.88
100 1000 133.35 124 85.73 19.88

Imperial Dimensions

D0Size
Code		D1D3L1L2
0.375 0095 24.6 21.8 43.66 8.74
0.5 0127 27.79 23.5 43.66 8.74
0.625 0158 30.95 27 43.66 10.32
0.75 0191 34.15 30.7 43.66 10.32
0.875 0222 37.3 33.4 43.66 10.32
1 0254 40.5 43.2 43.66 10.32
1.125 0286 47.63 46.6 60.33 11.99
1.25 0317 50.8 47.4 60.33 11.99
1.375 0349 53.98 52 60.33 11.99
1.5 0381 57.15 55.6 60.33 11.99
1.625 0412 60.33 59.2 60.33 11.99
1.75 0444 63.5 65.1 70.64 11.99
1.875 0476 66.68 66.7 70.64 11.99
2 0508 69.85 73.3 70.64 13.5
2.125 0539 73.03 73.3 70.64 13.5
2.25 0571 76.2 78.6 70.64 13.5
2.375 0603 79.38 82.1 70.64 13.5
2.5 0635 82.55 84.6 70.64 13.5
2.625 0666 92.08 88.6 69.85 15.88
2.75 0698 95.25 92 69.85 15.88
2.875 0730 98.43 95.2 73.03 15.88
3 0762 101.6 102.7 73.03 15.88
3.125 0794 111.15 104 79.38 19.88
3.25 0825 114.3 104 79.38 19.88
3.375 0857 117.48 108 79.38 19.88
3.5 0889 120.65 112 79.38 19.88
3.625 0921 123.83 114 82.55 19.88
3.75 0953 127 119 82.55 19.88
3.875 0984 130.2 121 85.73 19.88
4 1016 133.35 124 85.73 19.88
