Seal Details

Type: 12

Click for additional images

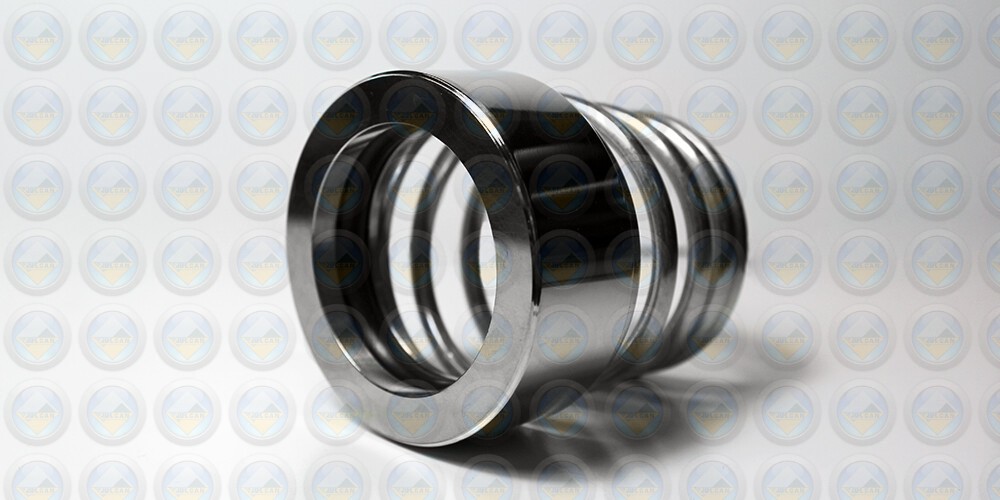

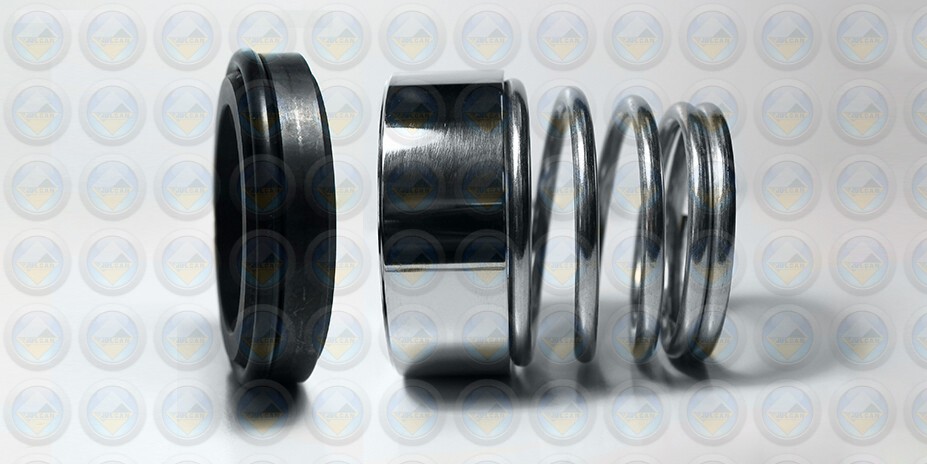

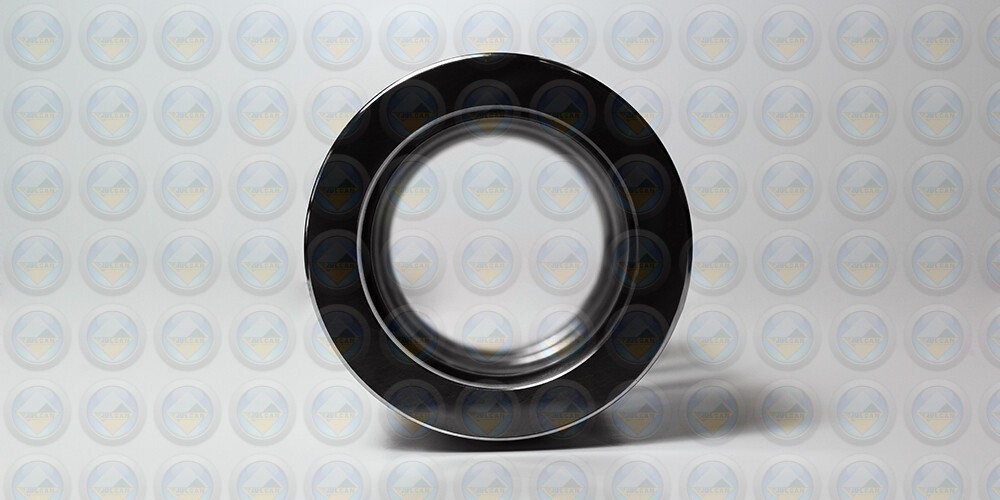

Highly proficient, widely utilised, ‘O’-Ring mounted, shaft directional dependent, conical spring seal, supplied routinely with a solid stainless steel head and a carbon Type 12 stationary to suit non-DIN housing sizes.

Efficient and popular design for a wide choice of general duties or available with inserted carbide ring faces for more demanding applications.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

10	0100	18.1	19	15	5.5
12	0120	20.6	21	18	5.5
13	0130	23.1	23	22	6
14	0140	23.1	23	22	6
15	0150	26.9	24	22	7
16	0160	26.9	26	23	7
17	0170	26.9	26	23	7
18	0180	30.9	29	24	8
19	0190	30.9	31	25	8
20	0200	30.9	31	25	8
22	0220	35.4	33	25	8
24	0240	35.4	35	27	8
25	0250	38.2	36	27	8.5
26	0260	38.2	36	27	8.5
28	0280	43.3	40	29	9
30	0300	43.3	43	30	9
32	0320	43.3	46	30	9
33	0330	53.5	46	39	11.5
34	0340	53.5	49	39	11.5
35	0350	53.5	49	39	11.5
38	0380	60.5	53	39	11.5
39	0390	60.5	56	39	11.5
40	0400	60.5	56	39	11.5
42	0420	60.5	59	39	11.5
43	0430	60.5	59	39	11.5
44	0440	65.5	61	41	11.5
45	0450	65.5	61	41	11.5
48	0480	65.5	64	41	11.5
50	0500	72.5	66	45	11.5
55	0550	72.5	71	47	11.5
60	0600	79.3	78	49	11.5
65	0650	84.5	84	51	11.5
70	0700	89.5	89.6	51	11.5
75	0750	94.5	98	57	11.5
80	0800	99.5	100	59	11.5
85	0850	105.5	107.5	59	13.5
90	0900	111.5	111	62	13.5
95	0950	116.5	119	62	13.5
100	1000	119.5	123.8	75	13.5
