Seal Details

Type: 126

Click for additional images

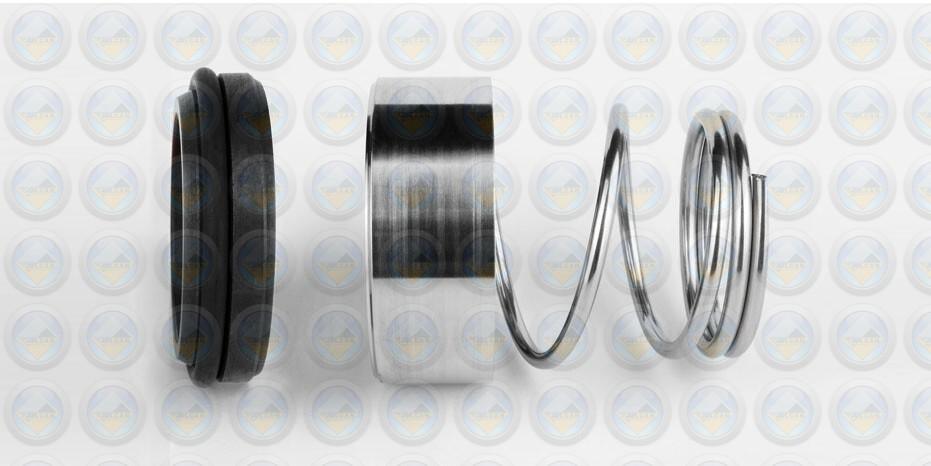

Highly proficient, ‘O’-Ring mounted, shaft directional dependent, conical spring seal. Available as Type 12DIN with stationaries to suit DIN housings, or as Type 126 for DIN24960 (EN12756) L1K dimensions.

Both types have monolithic stainless steel heads and Type 12DIN carbon stationaries as standard, with inserted carbide heads and monolithic stationaries available for more demanding applications.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

10	0100	21	19	7	25.5
12	0120	23	21	7	25.5
14	0140	25	23	7	28
16	0160	27	26	7	28
18	0180	33	29	10	27.5
20	0200	35	31	10	27.5
22	0220	37	33	10	27.5
24	0240	39	35	10	30
25	0250	40	36	10	30
28	0280	43	40	10	32.5
30	0300	45	43	10	32.5
32	0320	48	46	10	32.5
33	0330	48	46	10	32.5
35	0350	50	49	10	32.5
38	0380	56	53	13	32
40	0400	58	56	13	32
43	0430	61	59	13	32
45	0450	63	61	13	32
48	0480	66	64	13	32
50	0500	70	66	14	33.5
53	0530	73	69	14	33.5
55	0550	75	71	14	33.5
58	0580	78	76	14	38.5
60	0600	80	78	14	38.5
63	0630	83	81	14	N/A
65	0650	85	84	14	38.5
68	0680	90	88	16	N/A
70	0700	92	89.6	16	44
75	0750	97	98	16	44
80	0800	105	100	18	42
85	0850	110	107.5	18	42
90	0900	115	111	18	47
95	0950	120	119	18	47
100	1000	125	123.8	18	47
