Seal Details

Type: 12DIN

Click for additional images

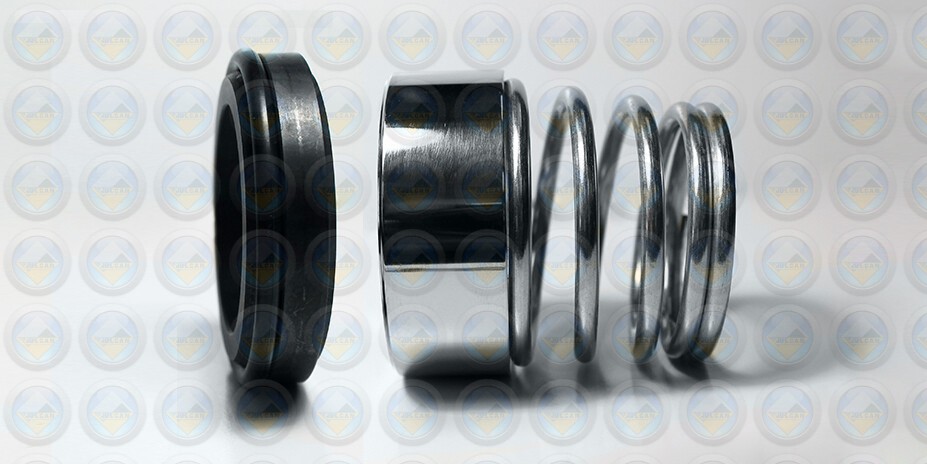

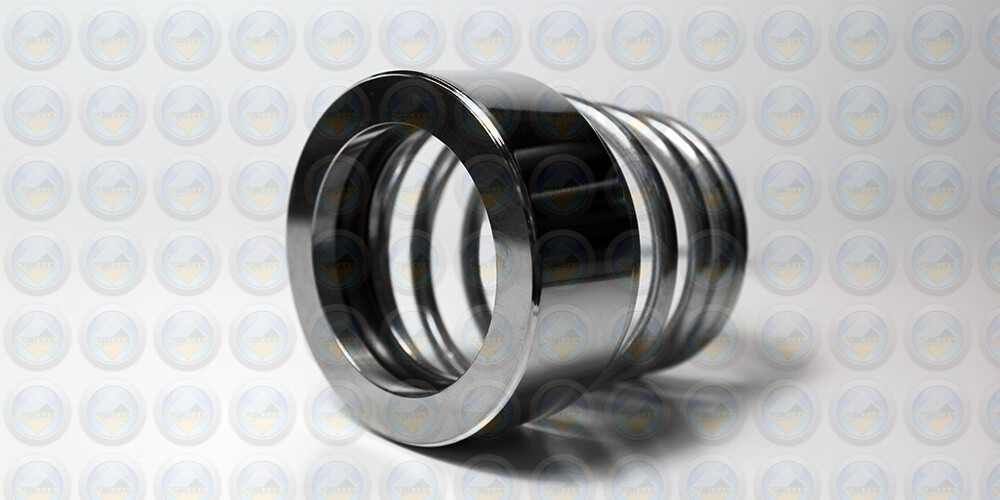

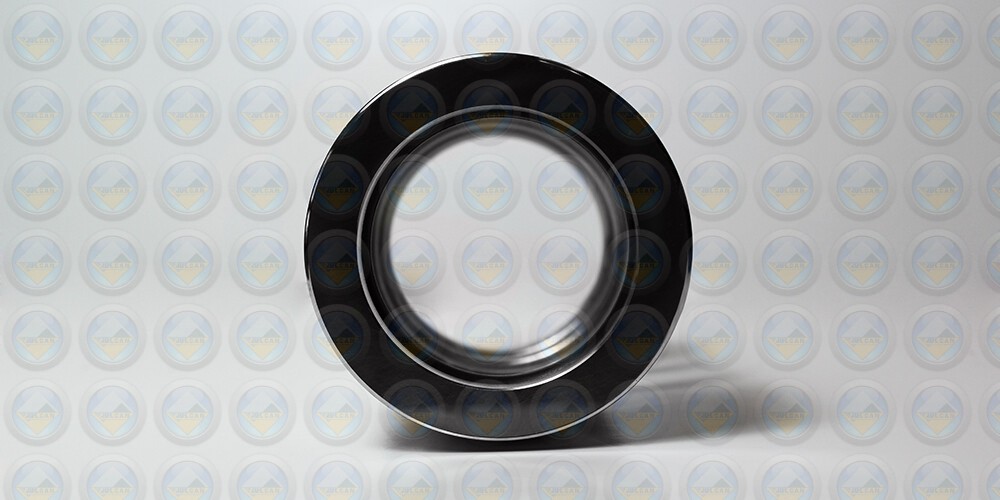

Highly proficient, ‘O’-Ring mounted, shaft directional dependent, conical spring seal. Available as Type 12DIN with stationaries to suit DIN housings, or as Type 126 for DIN24960 (EN12756) L1K dimensions.

Both types have monolithic stainless steel heads and Type 12DIN carbon stationaries as standard, with inserted carbide heads and monolithic stationaries available for more demanding applications.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

10	0100	21	19	15	7
12	0120	23	21	18	7
14	0140	25	23	22	7
16	0160	27	26	23	7
18	0180	33	29	24	10
20	0200	35	31	25	10
22	0220	37	33	25	10
24	0240	39	35	27	10
25	0250	40	36	27	10
28	0280	43	40	29	10
30	0300	45	43	30	10
32	0320	48	46	30	10
33	0330	48	46	39	10
35	0350	50	49	39	10
38	0380	56	53	42	13
40	0400	58	56	42	13
43	0430	61	59	47	13
45	0450	63	61	47	13
48	0480	66	64	47	13
50	0500	70	66	46	14
53	0530	73	69	56	14
55	0550	75	71	56	14
58	0580	78	76	56	14
60	0600	80	78	56	14
63	0630	83	81	56	14
65	0650	85	84	66	14
68	0680	90	88	64	16
70	0700	92	89.6	64	16
75	0750	97	98	64	16
80	0800	105	100	72	18
85	0850	110	107.5	72	18
90	0900	115	111	72	18
95	0950	120	119	72	18
100	1000	125	123.8	72	18
