Type: 13

Click for additional images

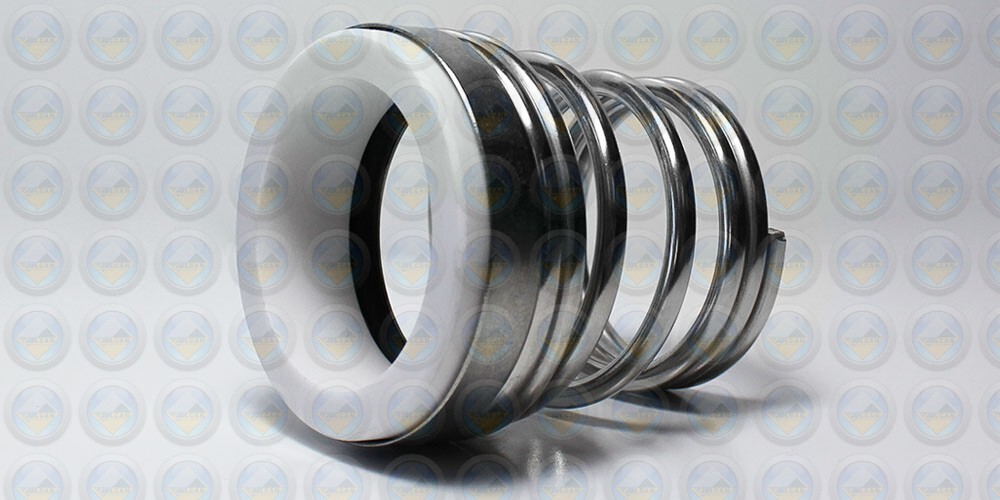

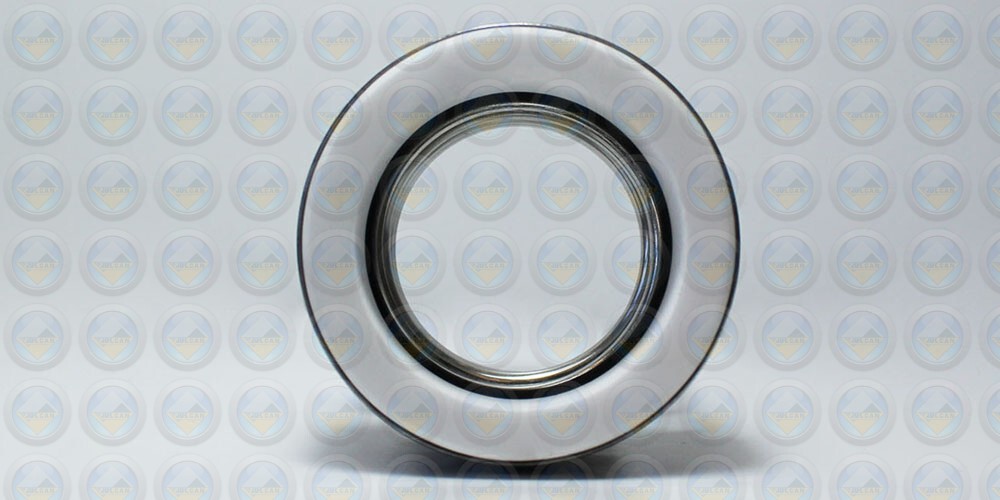

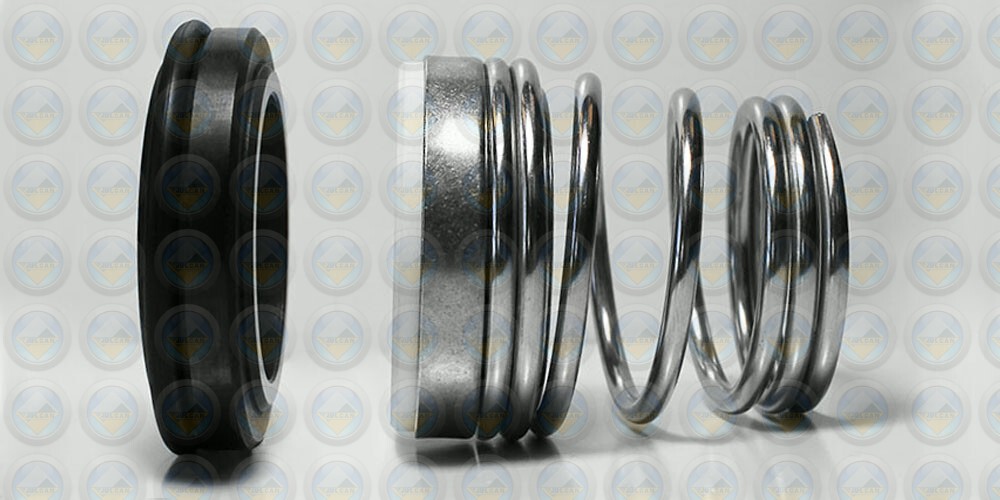

Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with pressed stainless steel head retainer and ‘O’-Ring mounted seal and stationary faces.

Seal and stationary faces can be readily changed and replaced. Supplied with a Type 13 stationary to suit common non-DIN housing dimensions.

Simple but effective, economical design makes this seal suitable for a wide variety of lighter and general duty applications.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

10	0100	18.1	19.5	15	5.5
11	0110	20.6	22	18	5.5
12	0120	20.6	22	18	5.5
13	0130	23.1	24	22	6
14	0140	23.1	24	22	6
15	0150	26.9	26	22	7
16	0160	26.9	26	23	7
17	0170	26.9	26	23	7
18	0180	30.9	32	24	8
19	0190	30.9	32.7	25	8
20	0200	30.9	32.7	25	8
21	0210	35.4	36	25	8
22	0220	35.4	36	25	8
23	0230	35.4	36	27	8
24	0240	35.4	37.4	27	8
25	0250	38.2	38	27	8.5
28	0280	43.3	42	29	9
30	0300	43.3	44	30	9
32	0320	43.3	45.5	30	9
33	0330	53.5	46.5	39	11.5
35	0350	53.5	49	39	11.5
38	0380	60.5	56	39	11.5
40	0400	60.5	58	39	11.5
