Type: 13DIN

Click for additional images

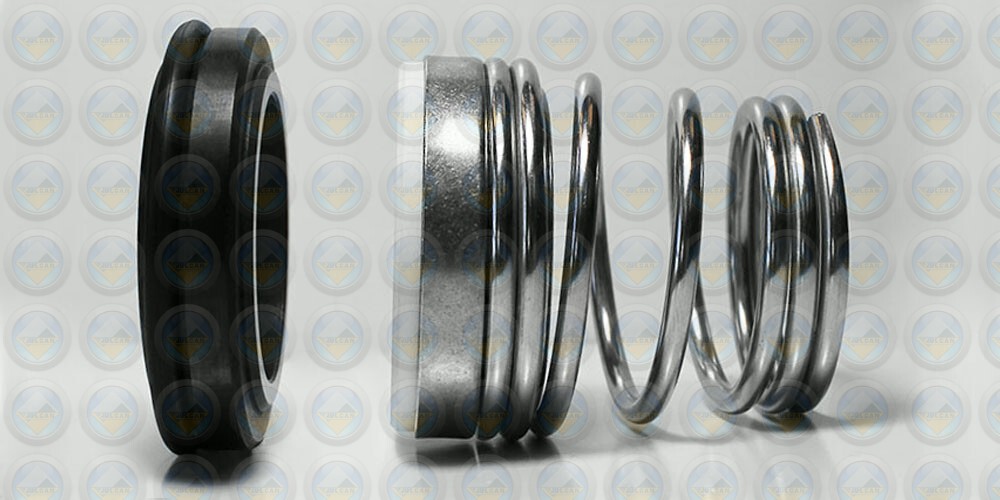

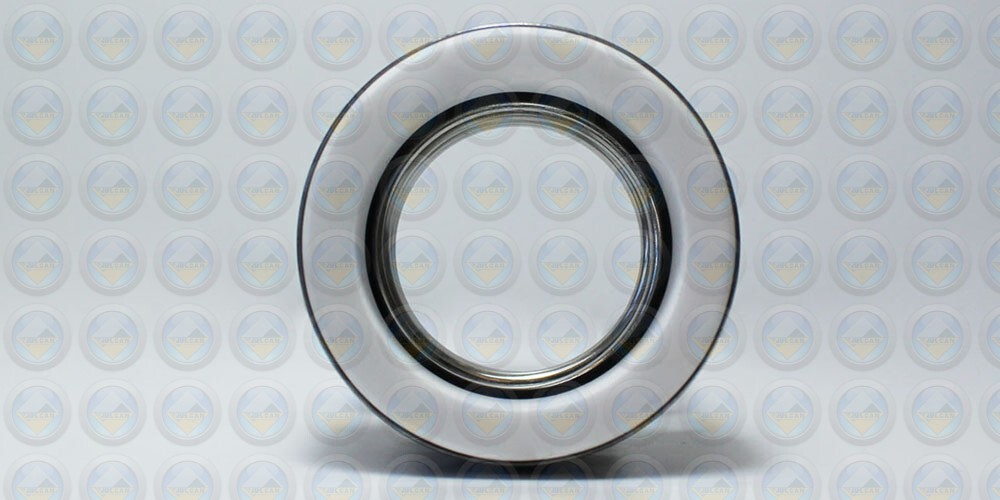

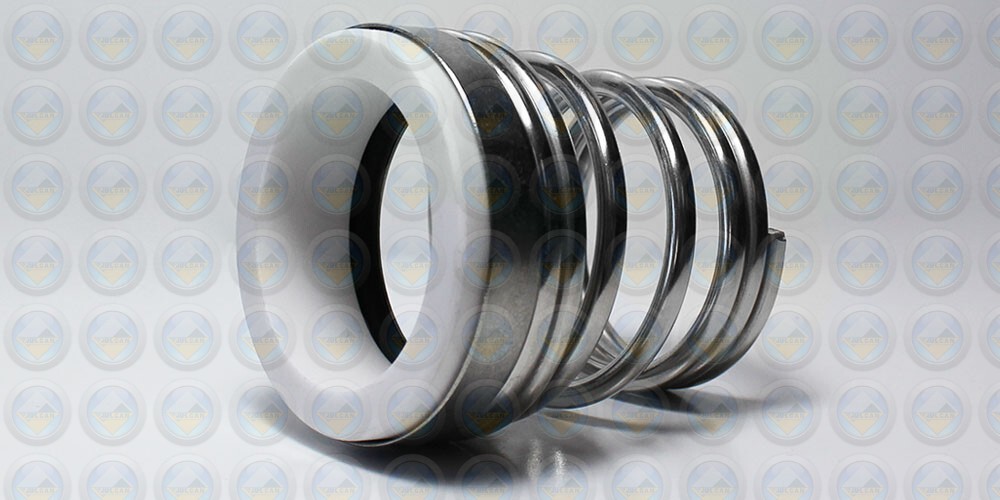

Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with pressed stainless steel head retainer and ‘O’-Ring mounted seal and stationary faces.

Seal and seat faces can be readily changed and replaced. Supplied with Type 13DIN stationary as standard, to suit DIN housing dimensions.

Simple but effective, economical design makes this seal suitable for a wide variety of lighter and general duty applications.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

10	0100	21	19.5	15	7
12	0120	23	22	18	7
14	0140	25	24	22	7
16	0160	27	26	23	7
18	0180	33	32	24	10
20	0200	35	32.7	25	10
22	0220	37	36	25	10
24	0240	39	37.4	27	10
25	0250	40	38	27	10
28	0280	43	42	29	10
30	0300	45	44	30	10
32	0320	48	45.5	30	10
33	0330	48	46.5	39	10
35	0350	50	49	39	10
38	0380	56	56	42	13
40	0400	58	58	42	13
