Seal Details

Type: 142DINS

Click for additional images

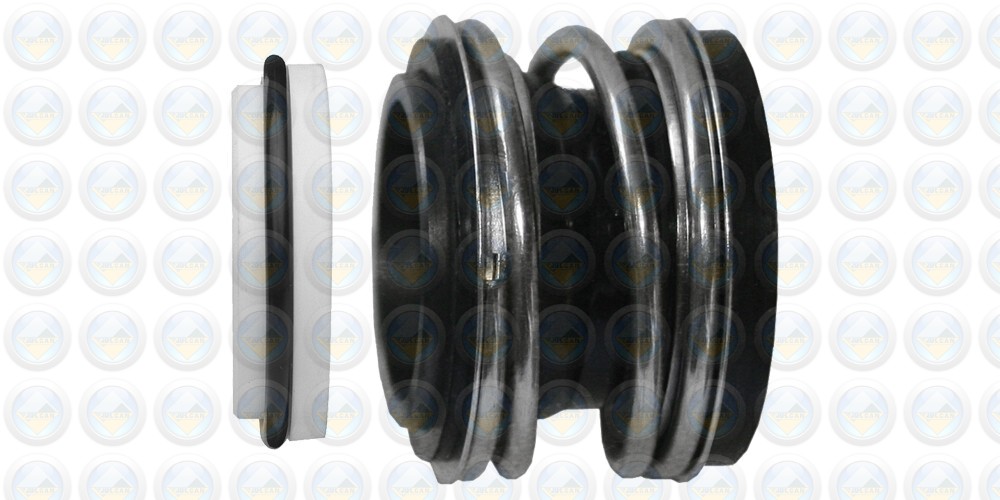

Universal compact seal with a choice of DIN working lengths. The robust, heavy duty bellows design provides excellent flexibility and durability.

This type, as standard, is supplied with Type 8 DIN SHORT ‘O’-Ring mounted stationaries to give full DIN24960 (EN12756) dimension compatibility. For the most commonly specified boot-mounted stationary alternative, please see Type 14DIN/142DIN.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

L1K

10	0100	21	20	25.9	6.6	32.5
12	0120	23	22	25.9	6.6	32.5
14	0140	25	24	28.4	6.6	35
15	0150	27	25	28.4	6.6	35
16	0160	27	26	28.4	6.6	35
18	0180	33	32	30	7.5	37.5
20	0200	35	34	30	7.5	37.5
22	0220	37	36	30	7.5	37.5
24	0240	39	38	32.5	7.5	40
25	0250	40	39	32.5	7.5	40
28	0280	43	42	35	7.5	42.5
30	0300	45	44	35	7.5	42.5
32	0320	48	46	35	7.5	42.5
33	0330	48	47	35	7.5	42.5
35	0350	50	49	35	7.5	42.5
38	0380	56	54	36	9	45
40	0400	58	56	36	9	45
43	0430	61	59	36	9	45
45	0450	63	61	36	9	45
48	0480	66	64	36	9	45
50	0500	70	66	38	9.5	47.5
53	0530	73	69	36.5	11	47.5
55	0550	75	71	36.5	11	47.5
58	0580	78	78	41.5	11	52.5
60	0600	80	80	41.5	11	52.5
65	0650	85	85	41.5	11	52.5
70	0700	92	90	48.7	11.3	60
75	0750	97	99	48.7	11.3	60
80	0800	105	104	48	12	60
85	0850	110	109	46	14	60
90	0900	115	114	51	14	65
95	0950	120	119	51	14	65
10	1000	125	124	51	14	65
