Seal Details

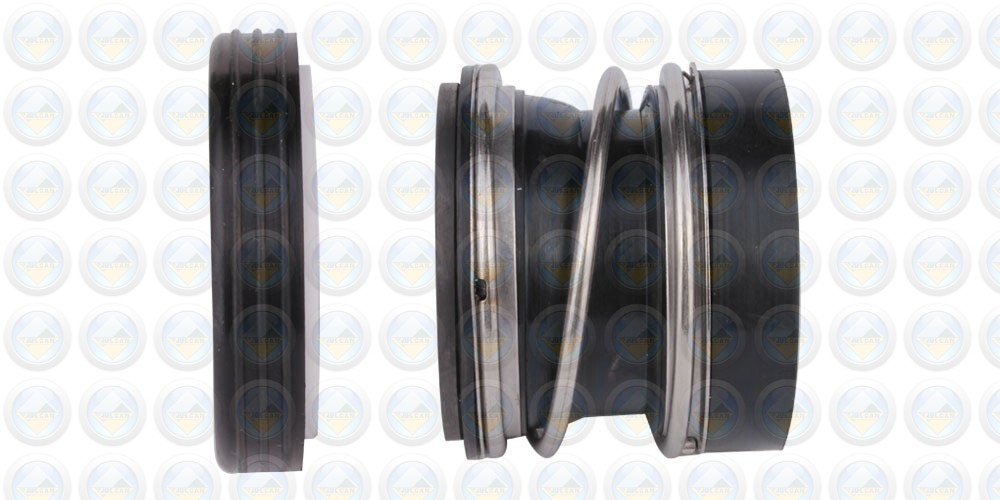

Type: 1511

1511

Click for additional images

Rubber bellows seal with the narrow DIN profile of Type 14DIN series and is also compliant to American ANSI seal chamber dimensions. The robust, heavy duty bellows design provides excellent flexibility and durability.

Available as standard with a boot-mounted Type 11 stationary, or as Type 1511J with an ‘O’-Ring mounted stationary, commonly preferred in the North American market. Both types have the same installation dimensions.

Existing Customer? Order on-line

Metric Dimensions

D0Size
Code		D1D3L1L2Seat
Size
12 0120 1 0.87 0.81 0.31 120
16 0160 1.25 1.02 0.88 0.41 160
18 0180 1.38 1.26 0.88 0.41 180
20 0200 1.5 1.34 0.94 0.41 200
22 0220 1.5 1.42 0.94 0.41 220
24 0240 1.63 1.5 1 0.44 240
25 0250 1.63 1.54 1 0.44 250
28 0280 1.75 1.65 1.06 0.44 280
30 0300 1.88 1.73 1.06 0.44 300
32 0320 1.88 1.81 1.06 0.44 320
33 0330 2 1.85 1.13 0.44 330
35 0350 2 1.93 1.13 0.44 350
38 0380 2.13 2.13 1.13 0.44 380
40 0400 2.38 2.21 1.38 0.5 400
43 0430 2.5 2.32 1.38 0.5 430
44 0440 2.5 2.4 1.38 0.5 440
45 0450 2.63 2.4 1.5 0.5 450
48 0480 2.75 2.52 1.5 0.5 480
50 0500 2.75 2.63 1.5 0.5 500
53 0530 3 2.72 1.69 0.56 530
55 0550 3.13 2.82 1.69 0.56 550
60 0600 3.25 3.15 1.81 0.56 600
65 0650 3.38 3.35 1.94 0.56 650
70 0700 3.5 3.54 1.94 0.63 700
75 0750 3.88 3.9 2.06 0.63 750

Imperial Dimensions

D0Size
Code		D1D3L1L2Seat
Size
0.5 0127 1 0.87 0.81 0.31 127
0.63 0158 1.25 1.02 0.88 0.41 158
0.75 0191 1.38 1.26 0.88 0.41 191
0.88 0222 1.5 1.42 0.94 0.41 222
1 0254 1.63 1.54 1 0.44 254
1.13 0286 1.75 1.65 1.06 0.44 286
1.25 0317 1.88 1.81 1.06 0.44 317
1.38 0349 2 1.93 1.13 0.44 349
1.5 0381 2.13 2.13 1.13 0.44 381
1.63 0412 2.38 2.21 1.38 0.5 412
1.75 0444 2.5 2.4 1.38 0.5 444
1.88 0476 2.63 2.52 1.5 0.5 476
2 0508 2.75 2.63 1.5 0.5 508
2.13 0539 3 2.72 1.69 0.56 539
2.25 0571 3.13 3.07 1.69 0.56 571
2.38 0603 3.25 3.15 1.81 0.56 603
2.5 0635 3.38 3.27 1.81 0.56 635
2.63 0666 3.38 3.35 1.94 0.56 666
2.75 0698 3.5 3.54 1.94 0.63 698
2.875 0730 3.75 3.78 2.06 0.63 730
3 0762 3.88 3.9 2.06 0.63 762
