Seal Details

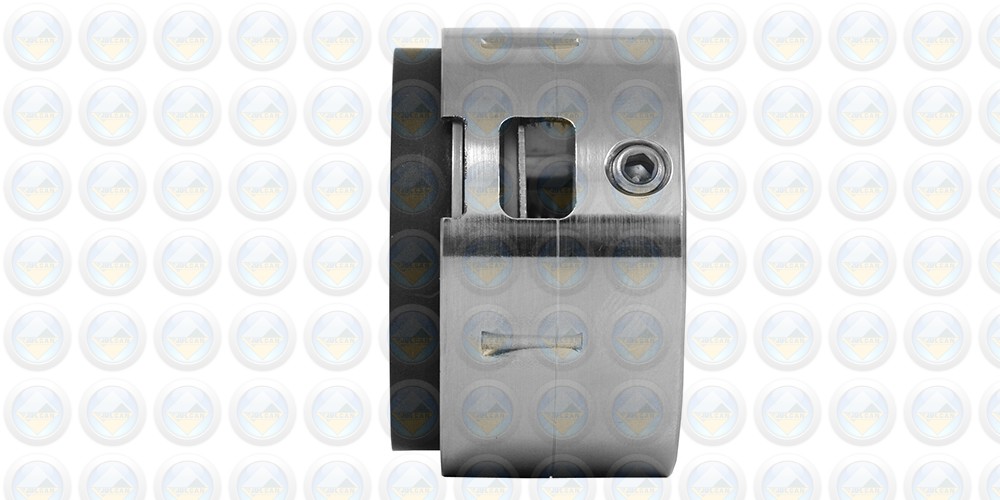

Type: 1609S

1609S

Click for additional images

Existing Customer? Order on-line

Metric Dimensions

D0Size
Code		D3L1Seat
Size
20 0200 1.406 0.937 200
22 0220 1.457 0.937 220
24 0240 1.563 1 240
25 0250 1.614 1 250
28 0280 1.752 1.059 280
30 0300 1.87 1.059 300
32 0320 1.996 1.125 320
35 0350 2.047 1.125 350
38 0380 2.189 1.125 380
40 0400 2.358 1.375 400
45 0450 2.555 1.375 450
48 0480 2.563 1.375 480
50 0500 2.751 1.375 500
55 0550 3.078 1.687 550
60 0600 3.272 1.687 600
65 0650 3.461 1.687 650
70 0700 3.654 1.687 700
75 0750 3.787 1.687 750
80 0800 3.984 1.687 800
85 0850 4.24 1.687 850
90 0900 4.441 1.687 900
95 0950 4.634 1.687 950
100 1000 4.831 1.687 1000

Imperial Dimensions

D0Size
Code		D3L1Seat
Size
0.625 0158 1.209 0.75 127
0.75 0191 1.366 0.875 158
0.875 0222 1.496 0.937 191
1 0254 1.614 1 222
1.125 0286 1.732 1.059 254
1.25 0317 1.929 1.059 286
1.375 0349 2.047 1.125 286
1.5 0381 2.189 1.125 317
1.625 0412 2.402 1.375 349
1.75 0444 2.531 1.375 381
1.875 0476 2.563 1.375 412
2 0508 2.783 1.375 444
2.125 0539 3.031 1.687 476
2.25 0571 3.154 1.687 508
2.375 0603 3.272 1.687 539
2.5 0635 3.409 1.687 571
2.625 0666 3.528 1.687 603
2.75 0698 3.654 1.687 635
2.875 0730 3.776 1.687 666
3 0762 3.846 1.687 698
3.125 0794 3.965 1.687 730
3.250 0825 4.154 1.687 762
3.375 0857 4.28 1.687 794
3.500 0889 4.409 1.687 825
3.625 0921 4.528 1.687 857
3.750 0953 4.654 1.687 889
3.875 0984 4.776 1.687 921
4.000 1016 4.906 1.687 953
