Seal Details

Return to Results

Type: 1724

Click for additional images

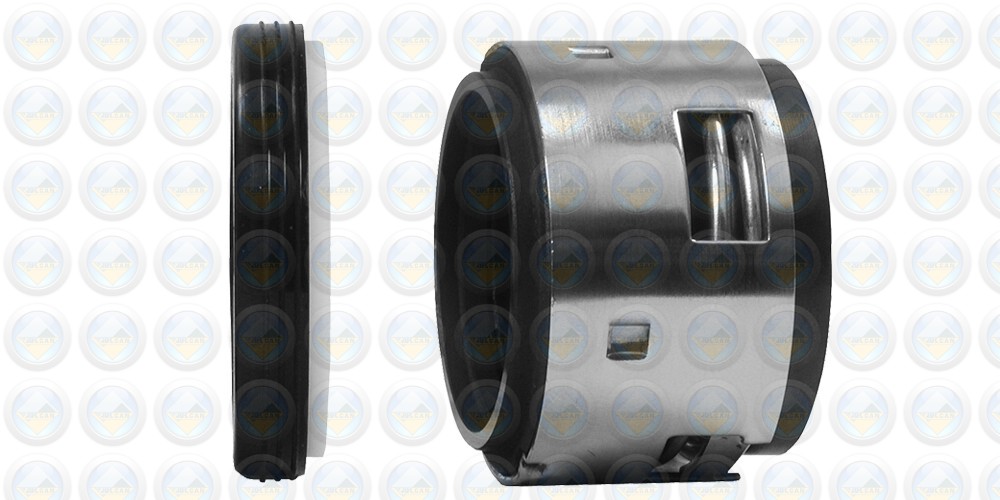

High performance, heavy duty, full convolution rubber bellows seal inside a stainless steel casing.

Type 1724 features a retained, positively driven face with a non-clogging spring, self-alignment capability, and is fully compliant to DIN24960 (EN12756) dimensions.

Type 1724 is supplied as standard with a Type 24 boot-mounted stationary. Please refer to Type 1724L/S for standard ‘O’-Ring mounted seat alternatives.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

L1K

14	0140	25	24	26.4	8.6	35
16	0160	27	26	26.4	8.6	35
18	0180	33	32	27.5	10	37.5
20	0200	35	34	27.5	10	37.5
22	0220	37	36	27.5	10	37.5
24	0240	39	38	30	10	40
25	0250	40	39	30	10	40
28	0280	43	42	32.5	10	42.5
30	0300	45	44	32.5	10	42.5
32	0320	48	46	32.5	10	42.5
33	0330	48	47	32.5	10	42.5
35	0350	50	49	32.5	10	42.5
38	0380	56	54	34	11	45
40	0400	58	56	34	11	45
43	0430	61	59	34	11	45
45	0450	63	61	34	11	45
48	0480	66	64	34	11	45
50	0500	70	66	34.5	13	47.5
53	0530	73	69	34.5	13	47.5
55	0550	75	71	34.5	13	47.5
60	0600	80	80	39.5	13	52.5
65	0650	85	85	39.5	13	52.5
68	0680	90	88	37.2	15.3	52.5
70	0700	92	89	44.7	15.3	60
75	0750	97	96	44.7	15.3	60
80	0800	105	104	44.3	15.7	60
85	0850	110	108	44.3	15.7	60
90	0900	115	114	49.3	15.7	65
95	0950	120	118	49.3	15.7	65
100	1000	125	124	49.3	15.7	65
