Type: 18

Click for additional images

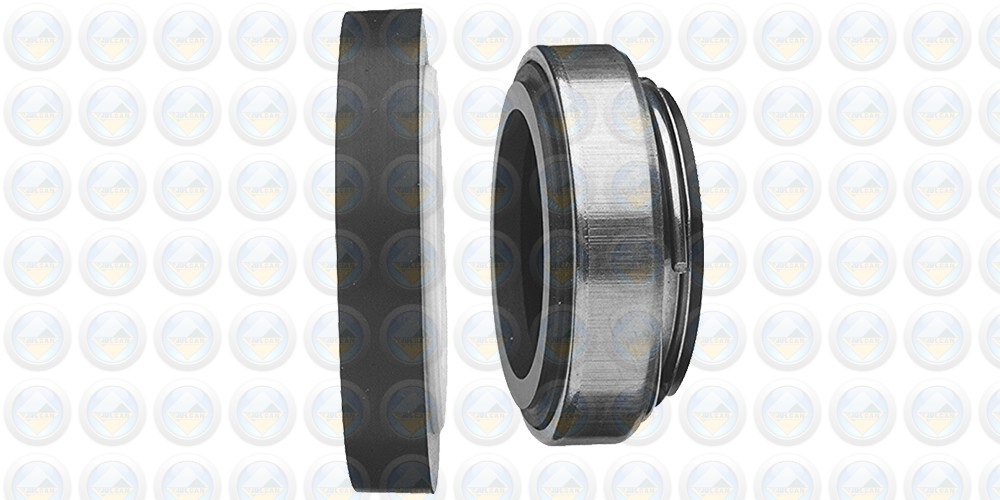

Compact, enclosed rubber bellows seal, with a boot mounted stationary with a smooth outer profile.

The very short working length makes the Type 18 ideal for equipment where seal chamber space is restricted.

Our Type 18 rotaries are supplied with a “top hat” metal retainer inserted in the tail of the seal to provide support to the bellows prior to fitting. Please remove this before  installation.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

8	0080	26	24	11	8
10	0100	26	24	11	8
11	0110	26	24	11	8
12	0120	26	24	11	8
13	0130	26	24	13	8
14	0140	35	32	13	8
15	0150	38	35	13	8
16	0160	38	35	13	8
17	0170	42	39	13	8
18	0180	42	39	13	8
19	0190	42	39	13	8
20	0200	42	39	13	8
22	0220	45	42	13	10
23	0230	50	47	14	10
24	0240	50	47	14	10
25	0250	50	47	14	10
27	0270	50	47	15	10
28	0280	57	54	15	10
30	0300	57	54	15	10
32	0320	57	54	15	10
35	0350	63	60	16	10
38	0380	68	65	17	12
40	0400	68	65	17	12
45	0450	73	70	20	12
50	0500	88	85	23	15
55	0550	88	85	23	15
60	0600	110	105	30	15
65	0650	110	105	30	15
70	0700	110	105	32	15
