Seal Details

Type: 192

Click for additional images

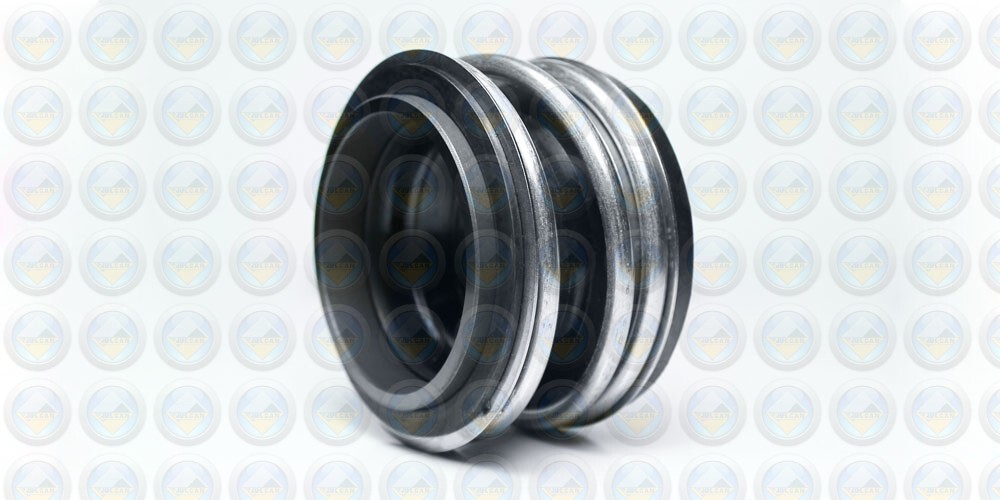

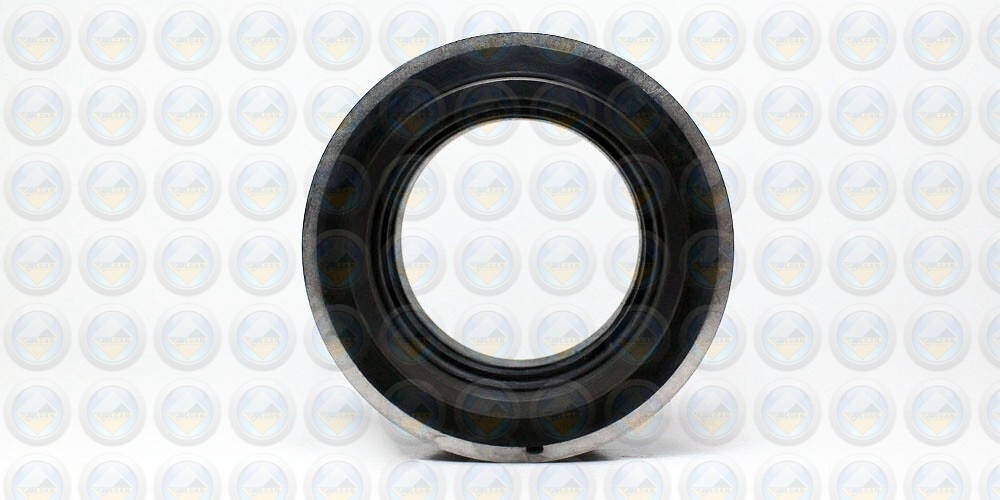

A robust rubber bellows seal with a wide, larger than DIN, cross section for optimum flexibility and durability. Type 19 series seals are supplied as standard with a Type 8 STD ‘O’-Ring mounted stationary to suit common, originally European, housing dimensions.

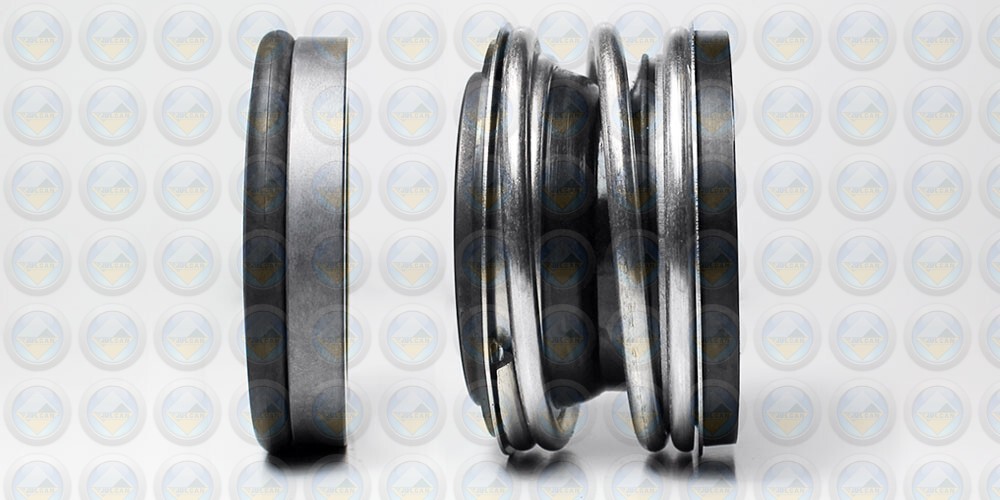

Also available as a “Z” suffix on our stock codes, with a bezel-profile Type 8 BEZ stationary, to the same installation dimensions, to suit pumps with seat retention plates.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

10	0100	19.2	20	25.9	6.6
12	0120	21.6	24.3	25.9	5.6
14	0140	24.6	28.5	28.4	5.6
15	0150	24.6	28.5	28.4	6.6
16	0160	28	28.5	28.4	7.5
18	0180	30	31	30	8
20	0200	35	36.5	30	7.5
22	0220	35	36.5	30	7.5
24	0240	38	41.1	32.5	7.5
25	0250	38	41.1	32.5	7.5
28	0280	42	47.6	35	9
30	0300	45	47.6	35	10.5
32	0320	48	51	35	10.5
33	0330	50	51	35	11
35	0350	52	54.5	35	11
38	0380	55	57.9	36	10.3
40	0400	58	60	36	10.8
43	0430	62	63.8	36	12
45	0450	64	65.7	36	11.6
48	0480	68.4	69.3	36	11.6
50	0500	69.3	71.8	38	11.6
53	0530	72.3	76	36.5	12.3
55	0550	75.4	78.3	36.5	13.3
58	0580	78.4	82.5	41.5	13.3
60	0600	80.4	85.5	41.5	13.3
65	0650	85.4	90.3	41.5	13
68	0680	91.5	94	41.2	13.7
70	0700	92	97	48.7	13
75	0750	99	102	48.7	14
80	0800	104	109.5	48	15
85	0850	109	116.7	46	14.8
90	0900	114	122.3	51	14.8
95	0950	120.3	127.6	51	15.8
100	1000	123.3	132	51	15.8
