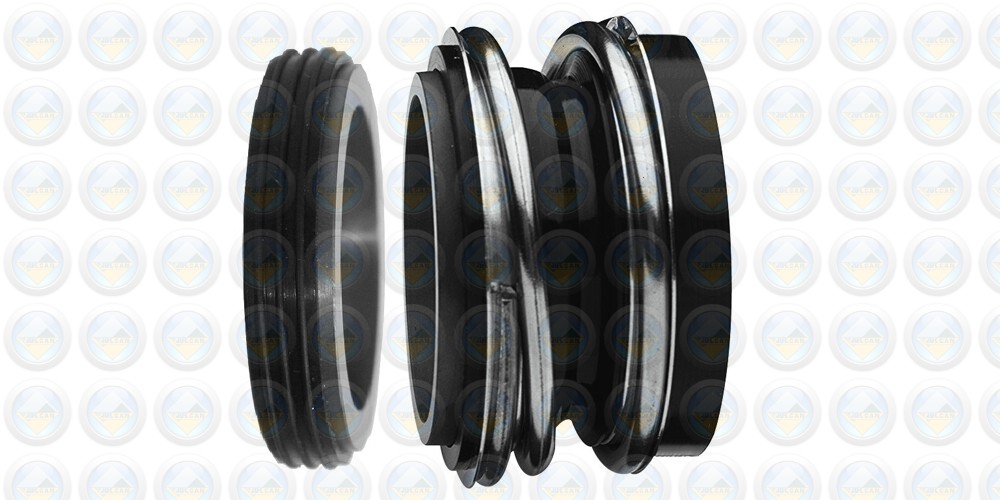

Type: 193B

Click for additional images

A robust rubber bellows seal with a wide, larger than DIN, cross section for optimum flexibility and durability. Type 19B series seals are supplied as standard with Type 19B boot-mounted stationaries to suit DIN 24960 (EN12756) housing dimensions.

Type 192B complete seal and seat assemblies have working lengths to meet DIN L1K and Type 193B provides working lengths to DIN L1N.



Metric Dimensions

D0

Size Code

D1

D3

L1

L2

L1N

10	0100	21	20	33.4	6.6	40
12	0120	23	24.3	33.4	6.6	40
14	0140	25	28.5	33.4	6.6	40
15	0150	27	28.5	33.4	6.6	40
16	0160	27	28.5	33.4	6.6	40
18	0180	33	31	37.5	7.5	45
20	0200	35	36.5	37.5	7.5	45
22	0220	37	36.5	37.5	7.5	45
24	0240	39	41.1	42.5	7.5	50
25	0250	40	41.1	42.5	7.5	50
28	0280	43	47.6	42.5	7.5	50
30	0300	45	47.6	42.5	7.5	50
32	0320	48	51	47.5	7.5	55
33	0330	48	51	47.5	7.5	55
35	0350	50	54.5	47.5	7.5	55
38	0380	56	57.9	46	9	55
40	0400	58	60	46	9	55
43	0430	61	63.8	51	9	60
45	0450	63	65.7	51	9	60
48	0480	66	69.3	51	9	60
50	0500	70	71.8	50.5	9.5	60
53	0530	73	76	59	11	70
55	0550	75	78.3	59	11	70
58	0580	78	82.5	59	11	70
60	0600	80	85.5	59	11	70
65	0650	85	90.3	69	11	80
68	0680	90	94	68.7	11.3	80
70	0700	92	97	68.7	11.3	80
75	0750	97	102	68.7	11.3	80
80	0800	105	109.5	78	12	90
85	0850	110	116.7	76	14	90
90	0900	115	122.3	76	14	90
95	0950	120	127.6	76	14	90
100	1000	125	132	76	14	90
