Seal Details

Type: 19B

Click for additional images

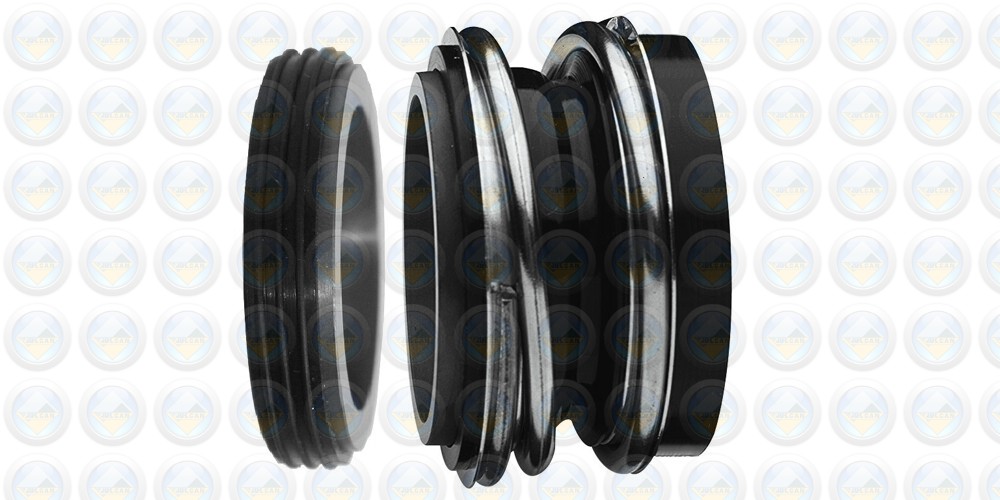

A robust rubber bellows seal with a wide, larger than DIN, cross section for optimum flexibility and durability. Type 19B series seals are supplied as standard with Type 19B boot-mounted stationaries to suit DIN 24960 (EN12756) housing dimensions.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

10	0100	21	20	14.5	6.6
12	0120	23	24.3	15	6.6
14	0140	25	28.5	17	6.6
15	0150	27	28.5	17	6.6
16	0160	27	28.5	17	6.6
18	0180	33	31	19.5	7.5
20	0200	35	36.5	21.5	7.5
22	0220	37	36.5	21.5	7.5
24	0240	39	41.1	22.5	7.5
25	0250	40	41.1	23	7.5
28	0280	43	47.6	26.5	7.5
30	0300	45	47.6	26.5	7.5
32	0320	48	51	27.5	7.5
33	0330	48	51	27.5	7.5
35	0350	50	54.5	28.5	7.5
38	0380	56	57.9	30	9
40	0400	58	60	30	9
43	0430	61	63.8	30	9
45	0450	63	65.7	30	9
48	0480	66	69.3	30.5	9
50	0500	70	71.8	30.5	9.5
53	0530	73	76	33	11
55	0550	75	78.3	35	11
58	0580	78	82.5	37	11
60	0600	80	85.5	38	11
65	0650	85	90.3	40	11
68	0680	90	94	40	11.3
70	0700	92	97	40	11.3
75	0750	97	102	40	11.3
80	0800	105	109.5	40	12
85	0850	110	116.7	41	14
90	0900	115	122.3	45	14
95	0950	120	127.6	46	14
100	1000	125	132	47	14
