Seal Details

Type: 24L

Click for additional images

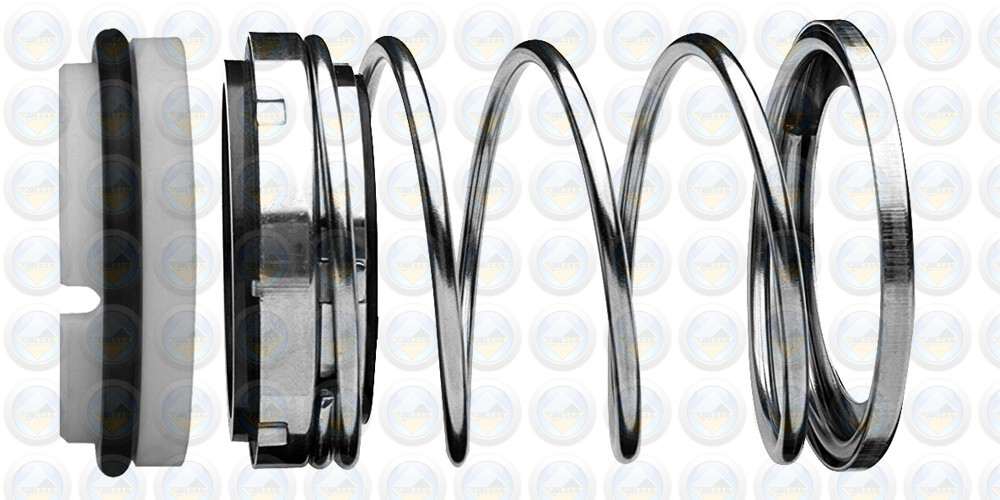

Compact, single spring, rubber diaphragm seal with an ’O’-Ring mounted stationary with anti-rotation provision

Specifically designed to comply with DIN 24960 (EN 12756) L1K- length dimensional requirements.

The Type 24's highly proficient and accommodating design enables it to be widely utilised.

Available as Type 24 with a boot-mounted stationary, or as Type 24S with a short ‘O’-Ring mounted stationary.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

L1K

Slot
Width

Slot
Depth

12	0120	23	21.7	23.9	8.6	32.5	4	5
14	0140	25	24.4	26.4	8.6	35	4	5
16	0160	27	27	26.4	8.6	35	4	5
18	0180	33	30.6	27.5	10	37.5	4	5.5
20	0200	35	33.4	27.5	10	37.5	4	5.5
22	0220	37	33.4	27.5	10	37.5	4	5.5
24	0240	39	37.8	30	10	40	4	5.5
25	0250	40	39.2	30	10	40	4	5.5
28	0280	43	42.1	32.5	10	42.5	4	5.5
30	0300	45	44	32.5	10	42.5	4	5.5
32	0320	48	45.6	32.5	10	42.5	4	5.5
33	0330	48	45.6	32.5	10	42.5	4	5.5
35	0350	50	49.3	32.5	10	42.5	4	5.5
38	0380	56	52.7	34	11	45	5	5.5
40	0400	58	55.7	34	11	45	5	5.5
43	0430	61	58.6	34	11	45	5	5.5
45	0450	63	61	34	11	45	5	5.5
48	0480	66	64	34	11	45	5	5.5
50	0500	70	66.1	34.5	13	47.5	5	5.5
53	0530	73	70.6	34.5	13	47.5	5	5.5
55	0550	75	70.6	34.5	13	47.5	5	5.5
58	0580	78	80	39.5	13	52.5	5	5.5
60	0600	80	80	39.5	13	52.5	5	5.5
63	0630	83	82.1	39.5	13	52.5	5	5.5
65	0650	85	85	39.5	13	52.5	5	5.5
68	0680	90	90	37.2	15.3	52.5	5	5.5
70	0700	92	90	44.7	15.3	60	5	5.5
75	0750	97	96.8	44.7	15.3	60	5	5.5
80	0800	105	104	44.3	15.7	60	5	5.5
85	0850	110	108	44.3	15.7	60	5	5.5
90	0900	115	111	49.3	15.7	65	5	5.5
95	0950	120	119	49.3	15.7	65	5	5.5
100	1000	125	124	49.3	15.7	65	5	5.5
