Type: 24S

Click for additional images

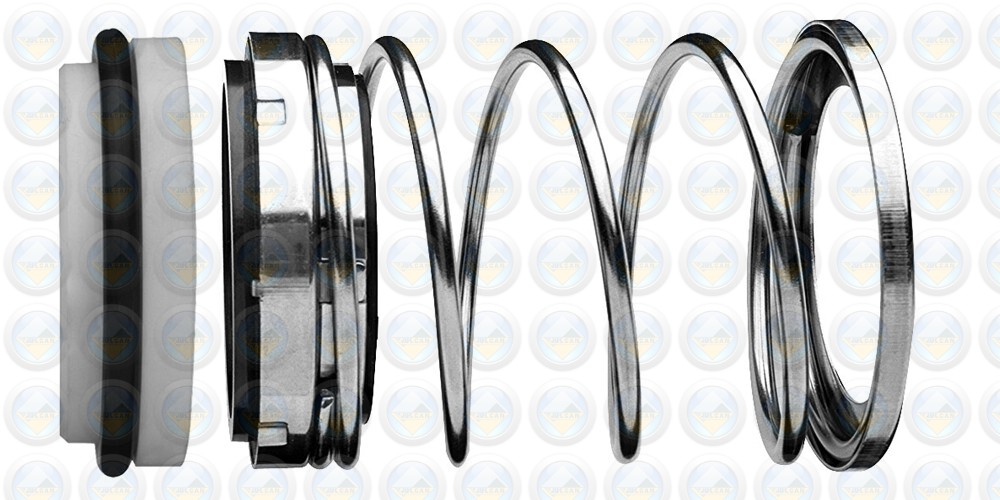

Compact, single spring, rubber diaphragm seal with a short ’O’-Ring mounted stationary.

Specifically designed to comply with DIN 24960 (EN 12756) L1K- length dimensional requirements.

The Type 24's highly proficient and accommodating design enables it to be widely utilised.

Available as Type 24 with a boot-mounted stationary, or as Type 24L with a long ‘O’-Ring mounted stationary with anti-rotation provision.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

L1K

12	0120	23	21.7	23.9	8.6	32.5
14	0140	25	24.4	26.4	8.6	35
16	0160	27	27	26.4	8.6	35
18	0180	33	30.6	27.5	10	37.5
20	0200	35	33.4	27.5	10	37.5
22	0220	37	33.4	27.5	10	37.5
24	0240	39	37.8	30	10	40
25	0250	40	39.2	30	10	40
28	0280	43	42.1	32.5	10	42.5
30	0300	45	44	32.5	10	42.5
32	0320	48	45.6	32.5	10	42.5
33	0330	48	45.6	32.5	10	42.5
35	0350	50	49.3	32.5	10	42.5
38	0380	56	52.7	34	11	45
40	0400	58	55.7	34	11	45
43	0430	61	58.6	34	11	45
45	0450	63	61	34	11	45
48	0480	66	64	34	11	45
50	0500	70	66.1	34.5	13	47.5
53	0530	73	70.6	34.5	13	47.5
55	0550	75	70.6	34.5	13	47.5
58	0580	78	80	39.5	13	52.5
60	0600	80	80	39.5	13	52.5
63	0630	83	82.1	39.5	13	52.5
65	0650	85	85	39.5	13	52.5
68	0680	90	90	37.2	15.3	52.5
70	0700	92	90	44.7	15.3	60
75	0750	97	96.8	44.7	15.3	60
80	0800	105	104	44.3	15.7	60
85	0850	110	108	44.3	15.7	60
90	0900	115	111	49.3	15.7	65
95	0950	120	119	49.3	15.7	65
100	1000	125	124	49.3	15.7	65
