Seal Details

Return to Results

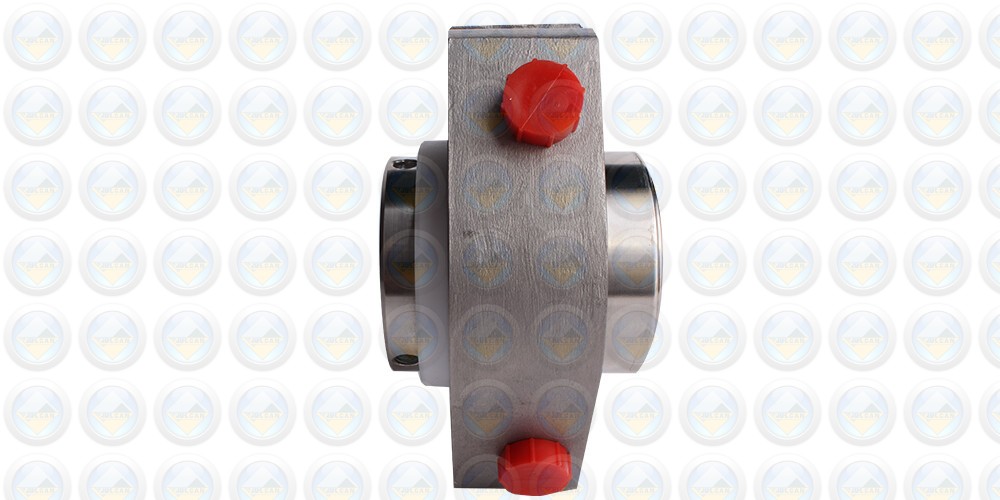

Type: 55B

Click for additional images

Metric Dimensions

D0

Size Code

D1

D4

L1

L2

L3

25	0250	42.3	56.5	46.4	11.8	30.5
28	0280	46	62	46.4	11.8	30.5
30	0300	48.9	70.9	46.4	12.3	30.5
32	0320	48.9	70.9	46.4	12.3	30.5
33	0330	52.8	70.9	46.4	13.3	30.5
35	0350	52.8	70.9	46.4	13.3	30.5
38	0380	56	71	46.4	13.8	30.5
40	0400	59.2	75.5	46.4	13.8	30.5
42	0420	59.2	75.5	46.4	13.8	30.5
43	0430	62.4	83	46.4	13.8	30.5
44	0440	62.4	83	46.4	13.8	30.5
45	0450	62.4	83	46.4	13.8	30.5
48	0480	65.8	82.5	46.4	15.8	30.5
50	0500	68.8	93	49.4	12.8	33.5
55	0550	75.2	95.5	49.4	12.8	33.5
60	0600	78.3	96	51.5	11.5	35.5
63	0630	84.2	111.3	54	12.8	35
65	0650	87.4	111.3	54	14.6	35.5
70	0700	90.6	111.3	54	14.6	35.5
75	0750	96.9	125	54	15	35.5
80	0800	100	126	54	16	35.5
85	0850	106.4	134	54	16	35.5
90	0900	112.8	144	54	16	35.5
95	0950	116	146	54	16	35.5
100	1000	125.6	155	57	10.8	35.5

Imperial Dimensions

D0

Size Code

D1

D4

L1

L2

L3

1	0254	42.3	56.5	46.4	11.8	30.5
1.125	0286	46	62	46.4	11.8	30.5
1.25	0317	48.9	70.9	46.4	12.3	30.5
1.375	0349	52.8	70.9	46.4	13.3	30.5
1.5	0381	56	71	46.4	13.8	30.5
1.625	0412	59.2	75.5	46.4	13.8	30.5
1.75	0444	62.4	83	46.4	13.8	30.5
1.875	0476	65.8	82.5	46.4	15.8	30.5
2	0508	68.8	93	49.4	12.8	33.5
2.125	0539	71.9	95.4	49.4	12.8	33.5
2.25	0571	75.2	95.5	49.4	12.8	33.5
2.375	0603	78.3	96	51.5	11.5	35.5
2.5	0635	84.2	111.3	54	12.8	33.5
2.625	0666	87.4	111.3	54	14.6	35.5
2.750	0698	90.6	111.3	54	14.6	35.5
3.000	0762	96.9	125	54	15	35.5
3.125	0794	100	126	54	16	35.5
3.250	0825	103.3	134	54	16	35.5
3.375	0857	106.4	134	54	16	35.5
3.500	0889	109.6	144	54	16	35.5
3.625	0921	112.8	144	54	16	35.5
3.750	0953	116	146	54	16	35.5
4.000	1016	125.6	155	57	10.8	35.5

Due to the complicated nature of these mechanical seals dimensions, please contact us or refer to the Vulcan Brochure.
