Type: 7D

Click for additional images

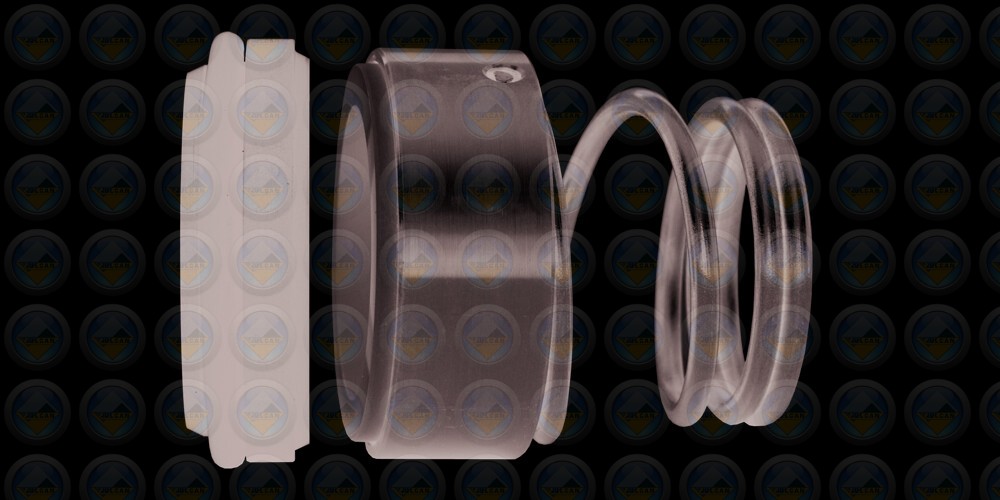

Resilient, conical spring, ‘O’-Ring mounted, shaft directional dependent seal with a stationary to suit DIN housings. The ‘O’-Ring mounted seal face offers enhanced versatility and performance. Type 7D is supplied as standard with a Type 7D stationary.

Also available as Type 7 in common sizes, with increased “L1” working length and Type 12 stationary.  More details are available upon request.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

12	0120	23	21	18	7
14	0140	25	23	22	7
16	0160	27	26	23	7
18	0180	33	29	24	10
20	0200	35	31	25	10
22	0220	37	33	25	10
24	0240	39	35	27	10
25	0250	40	36	27	10
28	0280	43	40	29	10
30	0300	45	43	30	10
32	0320	48	46	30	10
33	0330	48	46	39	10
35	0350	50	49	39	10
38	0380	56	53	42	13
40	0400	58	56	42	13
43	0430	61	59	47	13
45	0450	63	61	47	13
50	0500	70	66	46	14
55	0550	75	71	56	14
58	0580	78	76	56	14
60	0600	80	78	56	14
63	0630	83	81	56	14
65	0650	85	84	66	14
68	0680	90	88	64	16
70	0700	92	89.6	64	16
75	0750	97	98	64	16
80	0800	105	100	72	18
85	0850	110	107.5	72	18
90	0900	115	111	72	18
95	0950	120	119	72	18
100	1000	125	123.8	72	18
