Type: 8

Click for additional images

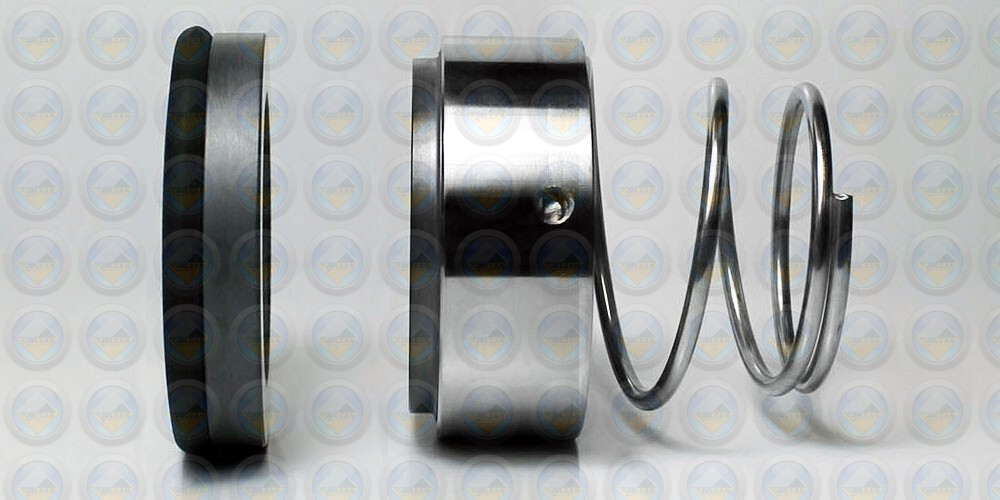

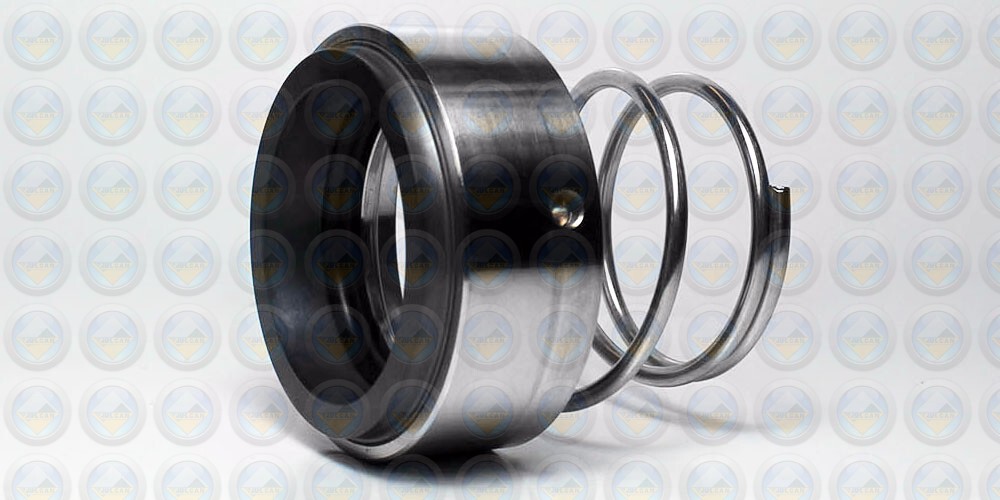

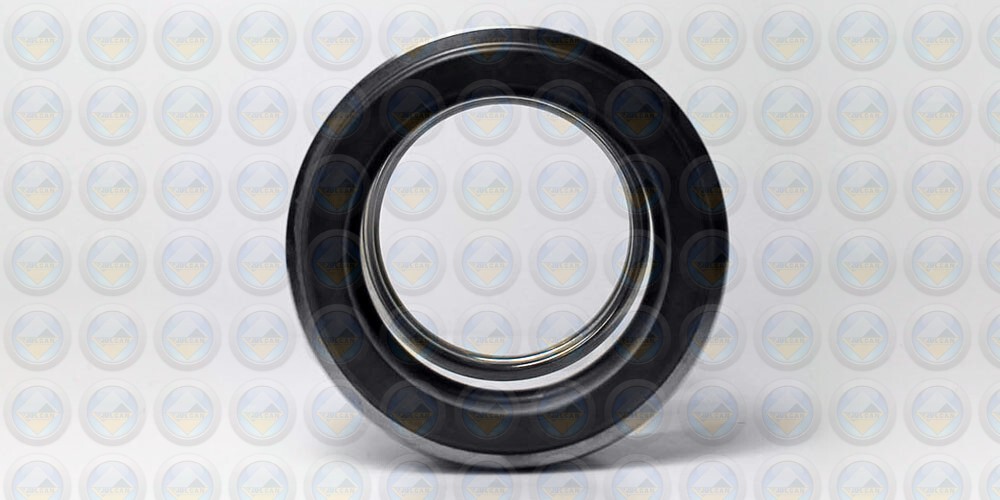

Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with inserted seal face. Very similar to Type 8DINS but with a stationary to suit common European non-DIN housings.

Suitable for a wide variety of general or even medium and heavy duty applications, through a choice of seal and seat face materials. Type 8 is supplied as standard with a Type 8 STD or can be available as rotary seal only to fit a variety of stationary seals.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

10	0100	19.2	19	15.5	6.6
12	0120	21.6	21	15.5	5.6
14	0140	24.6	23	15.5	5.6
15	0150	24.6	24	15.5	6.6
16	0160	28	26	17.5	7.5
18	0180	30	29	18.5	8
19	0190	31	31	20	7.5
20	0200	35	31	20	7.5
22	0220	35	33	21.5	7.5
24	0240	38	35	23	7.5
25	0250	38	36	24.5	7.5
26	0260	40	37	24.5	8
28	0280	42	40	24.5	9
30	0300	45	43	24.5	10.5
32	0320	48	46	28	10.5
33	0330	48	46	28	11
35	0350	52	49	28	11
38	0380	55	53	31	10.3
40	0400	58	56	34	10.8
42	0420	62	59	35	12
43	0430	62	59	35	12
45	0450	64	61	36.5	11.6
48	0480	68.4	64	42	11.6
50	0500	69.3	66	43	11.6
55	0550	75.4	71	47	13.3
58	0580	78.4	76	50	13.3
60	0600	80.4	78	51	13.3
65	0650	85.4	84	52	13
70	0700	92	90	54	13
75	0750	99	98	55	14
80	0800	104	100	58	15
