Type: 8B

Click for additional images

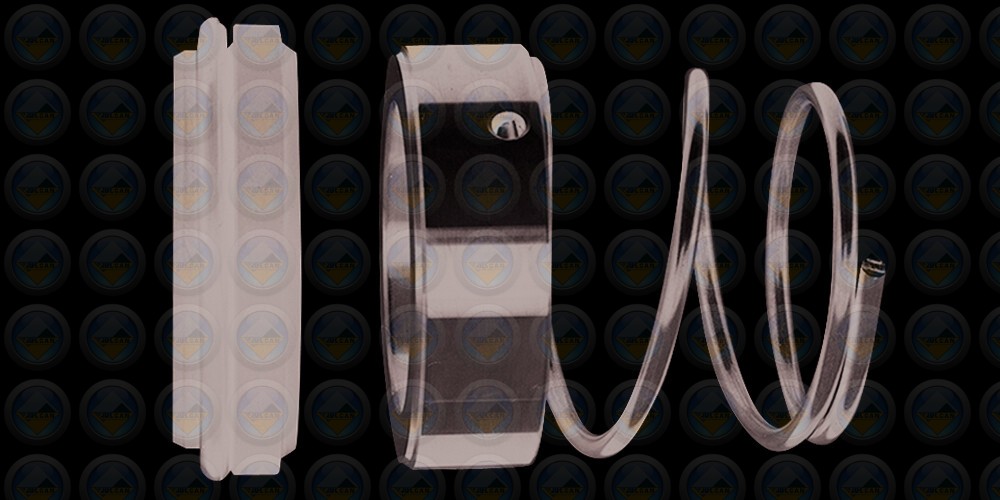

Conical spring, ’O’-Ring mounted, shaft directional dependent seal and stationary of similar design to the Type 8 but with a solid stainless steel head and ‘O’-Ring mounted carbon stationary. Type 8B is supplied as standard with a Type 8B stationary.

A highly proficient, economical seal for general duties.  For more demanding duties, you may require a Type 8 seal, with a choice of inserted faces.

Metric Dimensions

D0

Size Code

D1

D3

L1

L2

10	0100	19.2	19	15.5	7.1
12	0120	21.6	21	15.5	7.6
14	0140	24.6	23	15.5	7.6
15	0150	24.6	24	15.5	8.6
16	0160	28	26	17.5	9
18	0180	30	29	18.5	10
19	0190	31	31	20	9
20	0200	35	31	20	9.5
22	0220	35	33	21.5	9.5
24	0240	38	35	23	9.5
25	0250	38	36	24.5	9.5
26	0260	40	37	24.5	10
28	0280	42	40	24.5	11
30	0300	45	43	24.5	11
32	0320	48	46	28	11
35	0350	52	49	28	11.5
38	0380	55	53	31	11.5
40	0400	58	56	34	11.5
42	0420	62	59	35	14.3
43	0430	62	59	35	14.3
45	0450	64	61	36.5	14.3
48	0480	68.4	64	42	14.3
50	0500	69.3	66	43	14.3
55	0550	75.4	72	47	15.3
60	0600	80.4	78	51	15.3
65	0650	85.4	84	52	15.3
68	0680	91.5	88	53	16
70	0700	92	90	54	15.3
75	0750	99	98	55	15.3
80	0800	104	100	58	16.3
