Type: 8DINS

Click for additional images

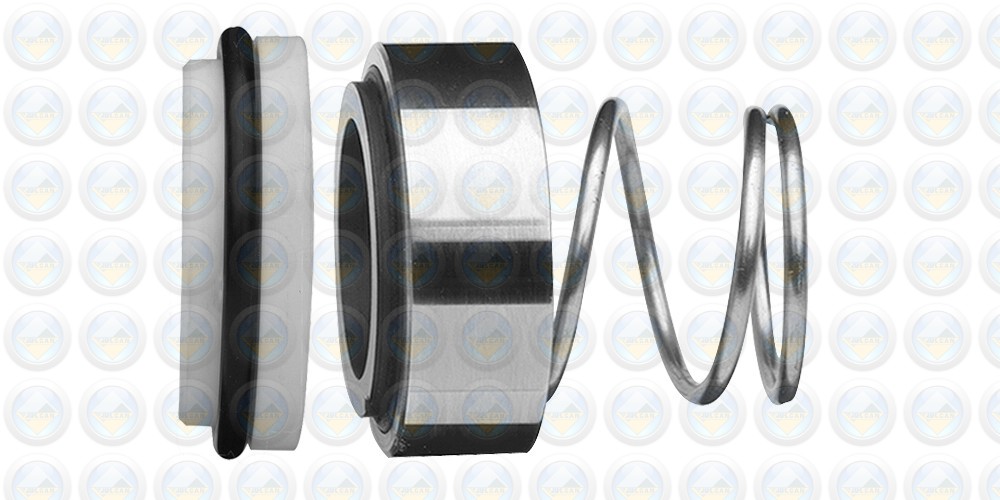

Conical spring, ‘O’-Ring mounted, shaft directional dependent seal with inserted seal face and stationary seal to suit DIN housings.

Type 8DINS is supplied with an 8DIN SHORT stationary, while Type 8DIN has an 8DIN LONG stationary with anti-rotation provision.

A widely specified seal type, suitable for general and even heavy duty applications through a combination of proficient design and choice of seal face materials.

Metric Dimensions

D0

Size Code

D1

D3

L1

L3

10	0100	21	19	15.5	6.6
12	0120	23	21	16	6.6
14	0140	25	23	16.5	6.6
16	0160	27	26	18	6.6
18	0180	33	29	19.5	7.5
20	0200	35	31	22	7.5
22	0220	37	33	21.5	7.5
24	0240	39	35	23.5	7.5
25	0250	40	36	26.5	7.5
28	0280	43	40	26.5	7.5
30	0300	45	43	26.5	7.5
32	0320	48	46	28.5	7.5
33	0330	48	46	28.5	7.5
35	0350	50	49	28.5	7.5
38	0380	56	53	33.5	9
40	0400	58	56	36	9
43	0430	61	59	38.5	9
45	0450	63	61	39.5	9
48	0480	66	64	46	9
50	0500	70	66	45	9.5
53	0530	73	69	47	11
55	0550	75	71	49	11
58	0580	78	76	55	11
60	0600	80	78	55	11
63	0630	83	81	55	11
65	0650	85	84	55	11
68	0680	90	88	55	11.3
70	0700	92	90	57	11.3
75	0750	97	98	62	11.3
80	0800	105	100	61.8	12
