Seal Details
Type: 9
Click for additional images

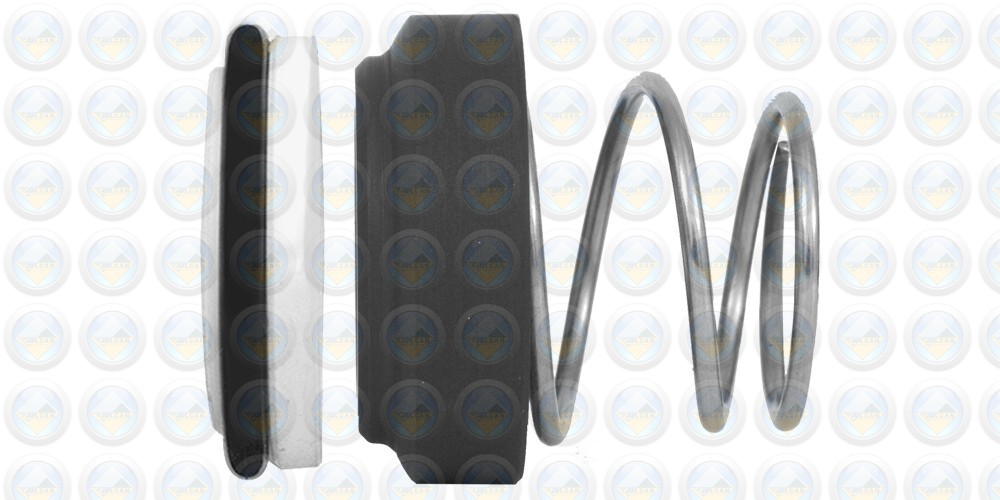

Conical spring, ‘O’-Ring mounted, shaft directional dependent seal, with a monolithic rotary head. Supplied as standard with Type 8 STD stationary to suit European non-DIN housing sizes.
Simple but effective and economical design makes this seal suitable for a wide variety of lighter and general duty applications. The monolithic seal head provides enhanced heat dissipation away from the seal faces.
Metric Dimensions
| D0 | Size Code | D1 | D3 | L1 | L2 |
| 10 | 0100 | 19.2 | 20 | 15.9 | 6.6 |
| 12 | 0120 | 21.6 | 22 | 16 | 5.6 |
| 14 | 0140 | 24.6 | 25 | 16 | 5.6 |
| 15 | 0150 | 24.6 | 27 | 17.4 | 6.6 |
| 16 | 0160 | 28 | 27 | 19 | 7.5 |
| 18 | 0180 | 30 | 30 | 20.5 | 8 |
| 20 | 0200 | 35 | 32 | 22 | 7.5 |
| 22 | 0220 | 35 | 35 | 23.5 | 7.5 |
| 24 | 0240 | 38 | 38 | 25 | 7.5 |
| 25 | 0250 | 38 | 40 | 26.5 | 7.5 |
| 28 | 0280 | 42 | 43 | 26.5 | 9 |
| 30 | 0300 | 45 | 45 | 25 | 10.5 |
| 32 | 0320 | 48 | 47 | 28.5 | 10.5 |
| 35 | 0350 | 52 | 50 | 28.5 | 11 |
| 38 | 0380 | 55 | 56 | 32 | 10.3 |
