Seal Details

Type: 95

95

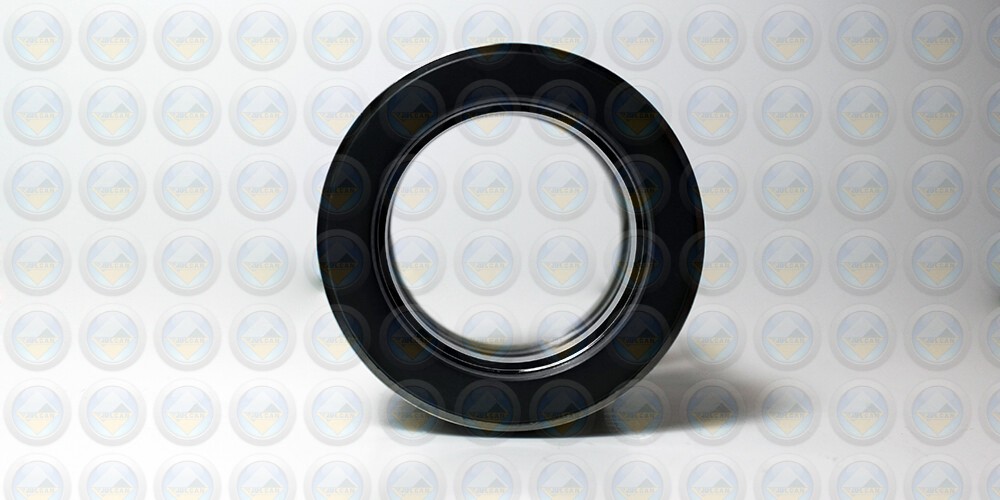

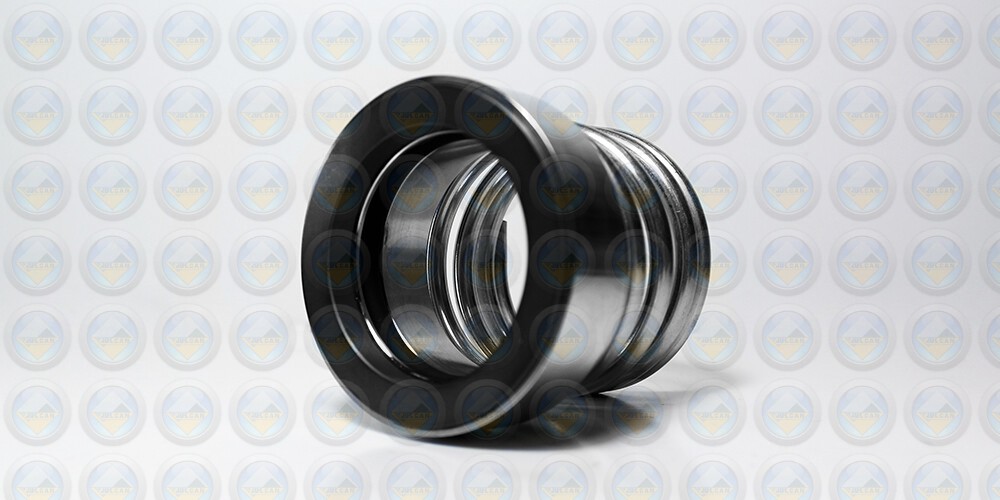

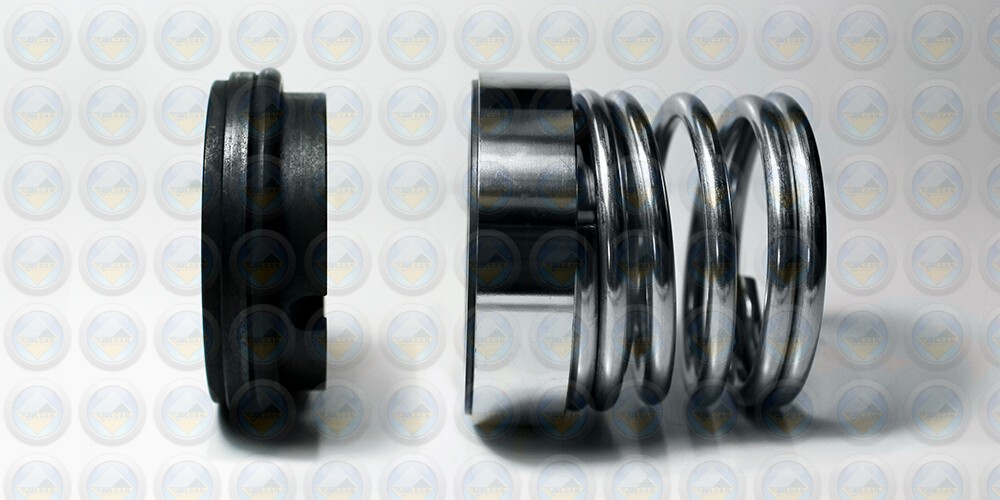

Click for additional images

Robust, general purpose, unbalanced pusher-type, ‘O’-Ring mounted seal, capable of many shaft-sealing duties. The Type 95 drives directly from the shaft, via a raised area of the shaft.

Available as standard with an anti-rotational Type 95 stationary and with either a monolithic stainless steel head or with inserted carbide faces.

Existing Customer? Order on-line

Metric Dimensions

D0Size
Code		D1D2D3L1L2Slot
Width		Slot
Depth
20 0200 33.32 24 34.5 27.5 9 5 5
25 0250 39.85 28.57 38.1 30 10 5 5
28 0280 43.05 31.75 42.6 31.5 10 5 5
30 0300 44.63 33.32 45.5 31.5 10 5 5
32 0320 46.32 34.92 46.2 34.5 10 5 5
35 0350 49.48 38.1 49.5 37.5 10 5 5
38 0380 52.56 42.88 52.5 37.5 10 5 5
40 0400 54.25 44.45 55 37.5 10 5 5
42 0420 55.83 46.02 55.5 37.5 10 5 5
44 0440 59.02 49.2 59.2 37.5 10 5 5
45 0450 59.02 49.2 59.2 37.5 10 5 5
50 0500 65.37 53.97 66 45.5 10 5 6.5
55 0550 70.03 58.72 70.2 47 10 5 6.5
60 0600 76.38 65.07 77 50.5 10 5 6.5
65 0650 81.23 69.85 82 53.5 10 5 6.5
70 0700 85.9 74.6 86.2 53.5 10 5 6.5
75 0750 90.77 79.37 91.5 56.5 10 5 6.5
80 0800 100.29 85.73 99.5 63 10 5 6.5
85 0850 104.77 89.4 105.5 63 10 5 6.5
90 0900 109.82 95.25 110.5 68 10 5 6.5
95 0950 114.3 100 115.5 68 10 5 6.5
100 1000 119.33 104.77 120 68 10 5 6.5
120 1200 142.87 126 144 78.9 10 5 6.5

Imperial Dimensions

D0Size
Code		D1D2D3L1L2Slot
Width		Slot
Depth
0.625 0158 28.57 19.05 29 24.5 9 5 5
0.75 0191 31.75 22.23 32.5 24.5 9 5 5
0.875 0222 34.93 25.4 34.93 26 9 5 5
1 0254 39.85 28.57 38.1 30 10 5 5
1.125 0286 43.05 31.75 42.6 31.5 10 5 5
1.25 0317 46.32 34.92 46.2 34.5 10 5 5
1.375 0349 49.48 38.1 49.5 37.5 10 5 5
1.5 0381 52.56 42.88 52.5 37.5 10 5 5
1.625 0412 55.83 46.02 55.5 37.5 10 5 5
1.75 0444 59.02 49.2 59.2 37.5 10 5 5
1.875 0476 63.68 52.37 59.2 42.5 10 5 6.5
2 0508 66.85 55.57 66.68 45.5 10 5 6.5
2.125 0539 70.03 58.72 70.2 47 10 5 6.5
2.25 0571 73.2 61.9 73.02 47 10 5 6.5
2.375 0603 76.38 65.07 76.2 50.5 10 5 6.5
2.5 0635 79.56 68.28 79.38 50.5 10 5 6.5
2.625 0666 82.73 71.42 82.55 53.5 10 5 6.5
2.75 0698 85.9 74.6 86.2 53.5 10 5 6.5
2.875 0730 89.08 77.77 90 56.5 10 5 6.5
3 0762 95.43 80.97 95.25 63 10 5 6.5
3.25 0825 101.78 87.3 101.6 63 10 5 6.5
3.375 0857 105.59 89.4 104.85 63 10 5 6.5
3.5 0889 108.13 93.67 107.95 63 10 5 6.5
4 1016 124 107.95 124.5 72.5 10 5 6.5
