Seal Details

Type: 97

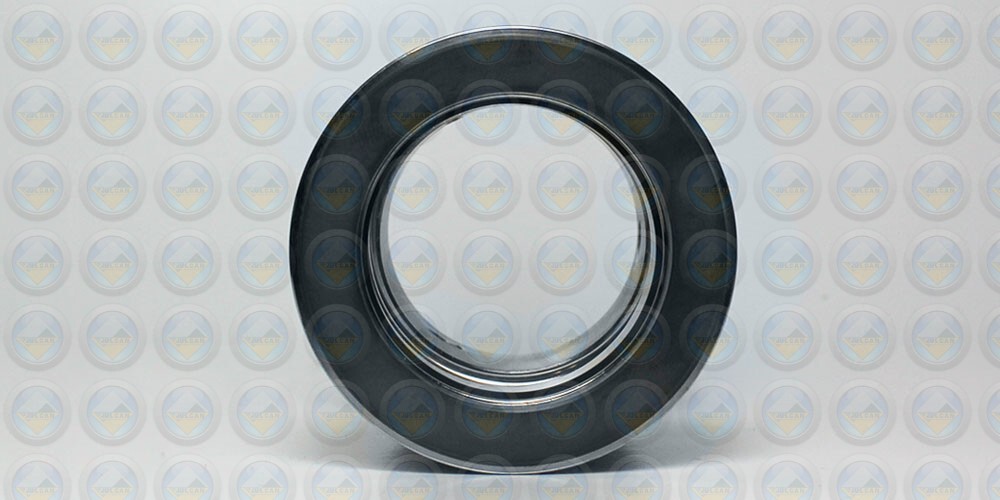

Click for additional images

Robust, general purpose, unbalanced pusher-type, ‘O’-Ring mounted seal capable of many shaft-sealing duties. The Type 97 drives from the shaft, via the drive collar with grub screws, inserted in the spring coil tail.

Available as standard with an anti-rotational Type 95 stationary and with either a monolithic stainless steel head or with inserted carbide faces.

Existing Customer? Order on-line

Metric Dimensions

Size
Code

Slot
Width

Slot
Depth

20	0200	33.32	34.5	35.5	9	5	5
25	0250	39.85	38.1	39	10	5	5
28	0280	43.05	42.6	41	10	5	5
30	0300	44.63	45.5	41	10	5	5
32	0320	46.32	46.2	44	10	5	5
35	0350	49.48	49.5	47	10	5	5
38	0380	52.56	52.5	47	10	5	5
40	0400	54.25	55	47	10	5	5
42	0420	55.83	55.5	47	10	5	5
45	0450	59.02	59.2	47	10	5	5
50	0500	65.37	66	58.5	10	5	6.5
55	0550	70.03	70.2	60	10	5	6.5
60	0600	76.38	77	63	10	5	6.5
65	0650	81.23	82	66	10	5	6.5
70	0700	85.9	86.2	66	10	5	6.5
75	0750	90.77	91.5	71	10	5	6.5
80	0800	100.29	99.5	77.5	10	5	6.5
85	0850	104.77	105.5	77.5	10	5	6.5
90	0900	109.82	110.5	82	10	5	6.5
95	0950	114.3	115.5	82	10	5	6.5
100	1000	119.33	120	82	10	5	6.5
115	1150	136.52	137.5	88.5	10	5	6.5
120	1200	142.87	144	95	10	5	c

Imperial Dimensions

Size
Code

Slot
Width

Slot
Depth

0.625	0158	28.57	29	32.5	9	5	5
0.75	0191	31.75	32.5	32.5	9	5	5
0.875	0222	34.93	34.93	35.5	9	5	5
1	0254	39.85	38.1	39	10	5	5
1.125	0286	43.05	42.6	41	10	5	5
1.25	0317	46.32	46.2	44	10	5	5
1.375	0349	49.48	49.5	47	10	5	5
1.5	0381	52.56	52.5	47	10	5	5
1.625	0412	55.83	55.5	47	10	5	5
1.75	0444	59.02	59.2	47	10	5	5
1.875	0476	63.68	59.2	55	10	5	6.5
2	0508	66.85	66.68	58.5	10	5	6.5
2.125	0539	70.03	70.2	60	10	5	6.5
2.25	0571	73.2	73.02	60	10	5	6.5
2.375	0603	76.38	76.2	63	10	5	6.5
2.5	0635	79.56	79.38	63	10	5	6.5
2.625	0666	82.73	82.55	66	10	5	6.5
2.75	0698	85.9	86.2	66	10	5	6.5
2.875	0730	89.08	90	71	10	5	6.5
3	0762	95.43	95.25	77.5	10	5	6.5
3.25	0825	101.78	101.6	77.5	10	5	6.5
3.5	0889	108.13	107.95	77.5	10	5	6.5
4	1016	124	124.5	88.5	10	5	6.5
