Seal Details

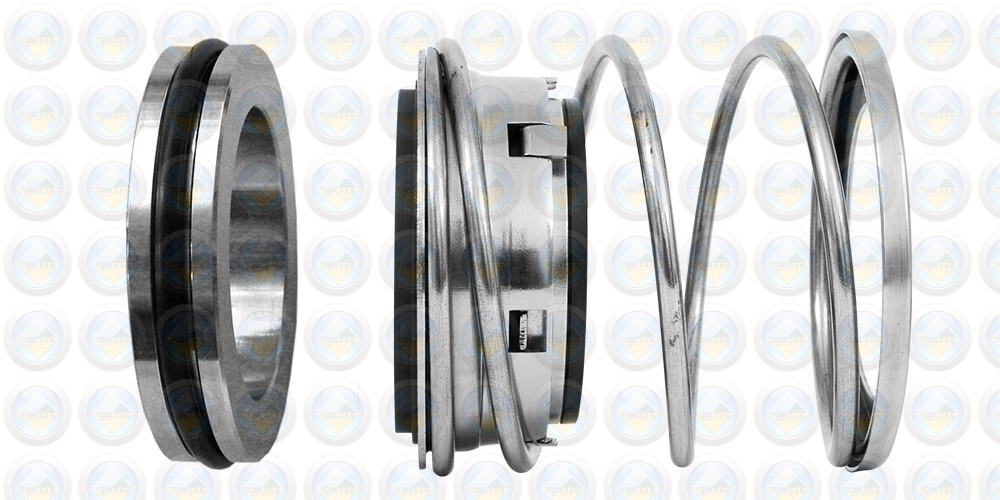

Type: A2H

A2H

Click for additional images



Robust, short working length, highly accommodating and reliable, rubber diaphragm balanced seal, which provides enhanced seal capability, performance and life.



The A2 Type coil fits over the seal head, reducing the overall working length, making this seal suitable for short gland depth applications. Improved design features further enhance this popular seal.



Available as Type A2 with a Type 20 boot-mounted seat as standard, or as Type A2H with a Type 21 ‘O’-Ring mounted stationary. Both types suitable for imperial dimensions.



Existing Customer? Order on-line

Metric Dimensions

D0Size
Code		D1D3L1L2
12 0120 27.79 30.2 25.4 8.74
13 0130 27.79 30.2 25.4 8.74
14 0140 30.95 33.37 25.4 10.32
15 0150 30.95 33.37 25.4 10.32
16 0160 30.95 33.37 25.4 10.32
18 0180 34.15 36.55 25.4 10.32
19 0191 34.15 36.55 25.4 10.32
20 0200 35.7 39.72 25.4 10.32
22 0220 37.3 39.72 25.4 10.32
24 0240 40.5 44.3 25.4 10.32
25 0250 40.5 44.3 25.4 10.32
28 0280 47.63 49.07 33.34 11.99
30 0300 50.8 53.4 33.34 11.99
32 0320 50.8 53.4 33.34 11.99
33 0330 53.98 57.58 33.34 11.99
35 0350 53.98 57.58 33.34 11.99
38 0380 57.15 60.75 33.34 11.99
40 0400 60.33 67.4 33.34 11.99
43 0430 63.5 71.97 40.48 11.99
45 0450 63.5 71.97 40.48 11.99
48 0480 66.68 75.14 40.48 11.99
50 0500 69.85 78.31 40.48 13.5
53 0530 73.03 82.72 40.48 13.5
55 0550 76.2 86 40.48 13.5
60 0600 79.38 89 40.48 13.5
63 0630 82.55 92.24 40.48 13.5
65 0650 92.08 97.92 49.21 15.88
70 0700 95.25 101.6 49.21 15.88
75 0750 101.6 108.45 52.39 15.88

Imperial Dimensions

D0Size
Code		D1D3L1L2
0.5 0127 27.79 30.2 25.4 8.74
0.625 0158 30.95 33.37 25.4 10.32
0.75 0191 34.15 36.55 25.4 10.32
0.875 0222 37.3 39.72 25.4 10.32
1 0254 40.5 44.3 25.4 10.32
1.125 0286 47.63 49.07 33.34 11.99
1.25 0317 50.8 53.4 33.34 11.99
1.375 0349 53.98 57.58 33.34 11.99
1.5 0381 57.15 60.75 33.34 11.99
1.625 0412 60.33 67.4 33.34 11.99
1.75 0444 63.5 71.97 40.48 11.99
1.875 0476 66.68 75.14 40.48 11.99
2 0508 69.85 78.31 40.48 13.5
2.125 0539 73.03 82.72 40.48 13.5
2.25 0571 76.2 86 40.48 13.5
2.375 0603 79.38 89 40.48 13.5
2.5 0635 82.55 92.24 40.48 13.5
2.625 0666 92.08 97.92 49.21 15.88
2.75 0698 95.25 101.1 49.21 15.88
2.875 0730 98.43 105.27 52.39 15.88
3 0762 101.6 108.45 52.39 15.88
