Seal Details
Type: A5J
Click for additional images

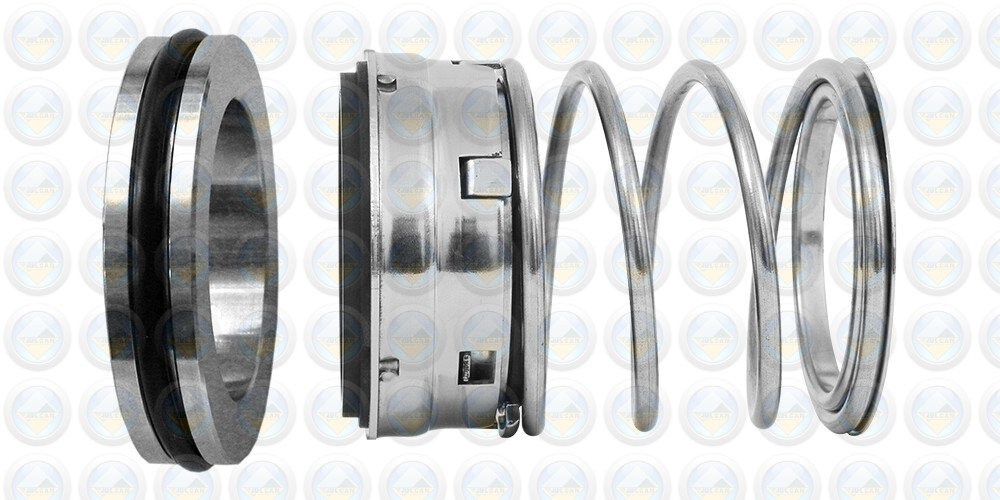

Robust, long working length, highly accommodating and reliable, rubber diaphragm balanced seal which provides enhanced seal capability, performance and life. Improved design features enhance this popular seal.
Suitable for common US standard housing and working length dimensions. Available as Type A5 with Type 11 boot-mounted seat, or as Type A5J with Type 31 ‘O’-Ring mounted stationary.
Imperial Dimensions
| D0 | Size Code | D1 | D3 | L1 | L2 |
| 0.5 | 0127 | 1 | 0.937 | 1.187 | 0.312 |
| 0.625 | 0158 | 1.25 | 1.093 | 1.312 | 0.405 |
| 0.75 | 0191 | 1.375 | 1.218 | 1.312 | 0.405 |
| 0.875 | 0222 | 1.5 | 1.343 | 1.375 | 0.405 |
| 1 | 0254 | 1.625 | 1.5 | 1.562 | 0.437 |
| 1.125 | 0286 | 1.75 | 1.625 | 1.625 | 0.437 |
| 1.25 | 0317 | 1.875 | 1.812 | 1.625 | 0.437 |
| 1.375 | 0349 | 2 | 1.917 | 1.687 | 0.437 |
| 1.5 | 0381 | 2.125 | 2.041 | 1.687 | 0.437 |
| 1.625 | 0412 | 2.375 | 2.287 | 2 | 0.5 |
| 1.75 | 0444 | 2.5 | 2.412 | 2 | 0.5 |
| 1.875 | 0476 | 2.625 | 2.537 | 2.125 | 0.5 |
| 2 | 0508 | 2.75 | 2.646 | 2.125 | 0.5 |
| 2.125 | 0539 | 3 | 2.835 | 2.375 | 0.562 |
| 2.25 | 0571 | 3.125 | 2.965 | 2.375 | 0.562 |
| 2.375 | 0603 | 3.25 | 3.083 | 2.5 | 0.562 |
| 2.5 | 0635 | 3.375 | 3.21 | 2.5 | 0.562 |
| 2.625 | 0666 | 3.375 | 3.394 | 2.75 | 0.625 |
| 2.75 | 0698 | 3.5 | 3.52 | 2.875 | 0.625 |
| 2.875 | 0730 | 3.75 | 3.644 | 2.875 | 0.625 |
| 3 | 0762 | 3.875 | 3.77 | 2.875 | 0.625 |
